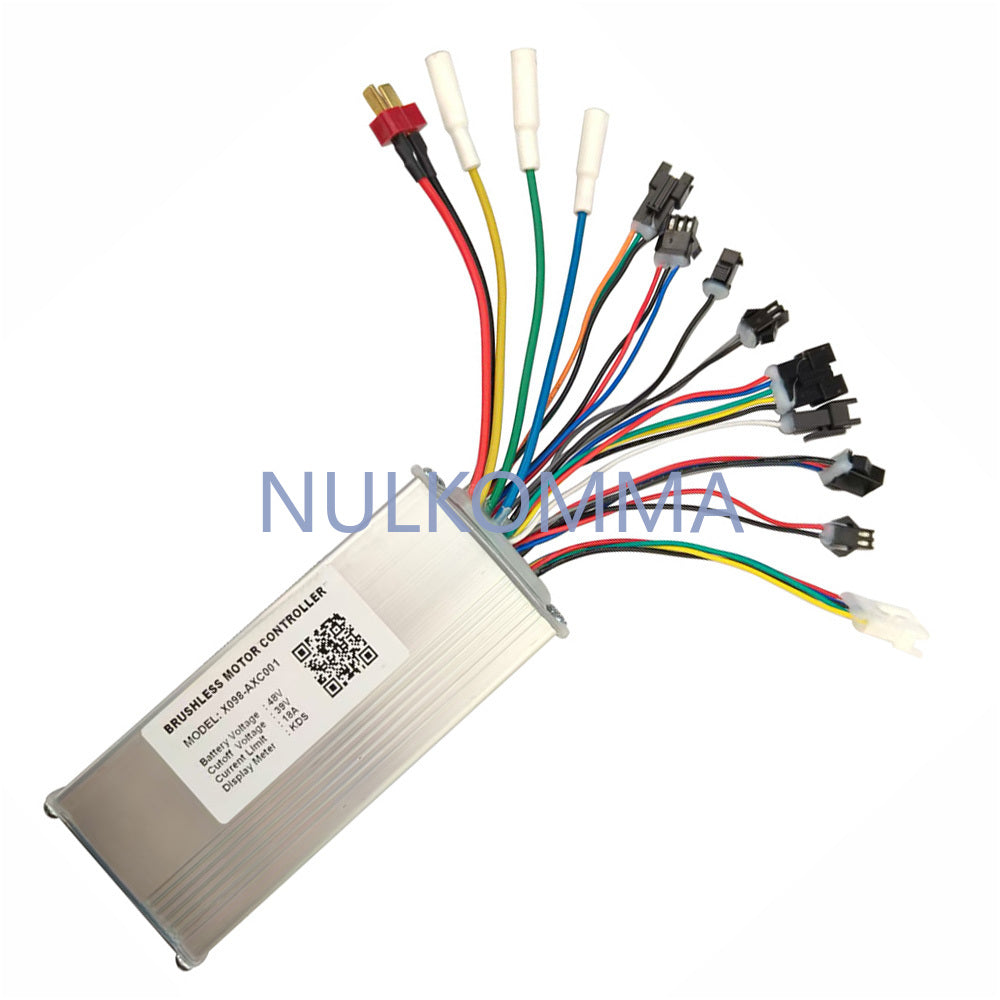

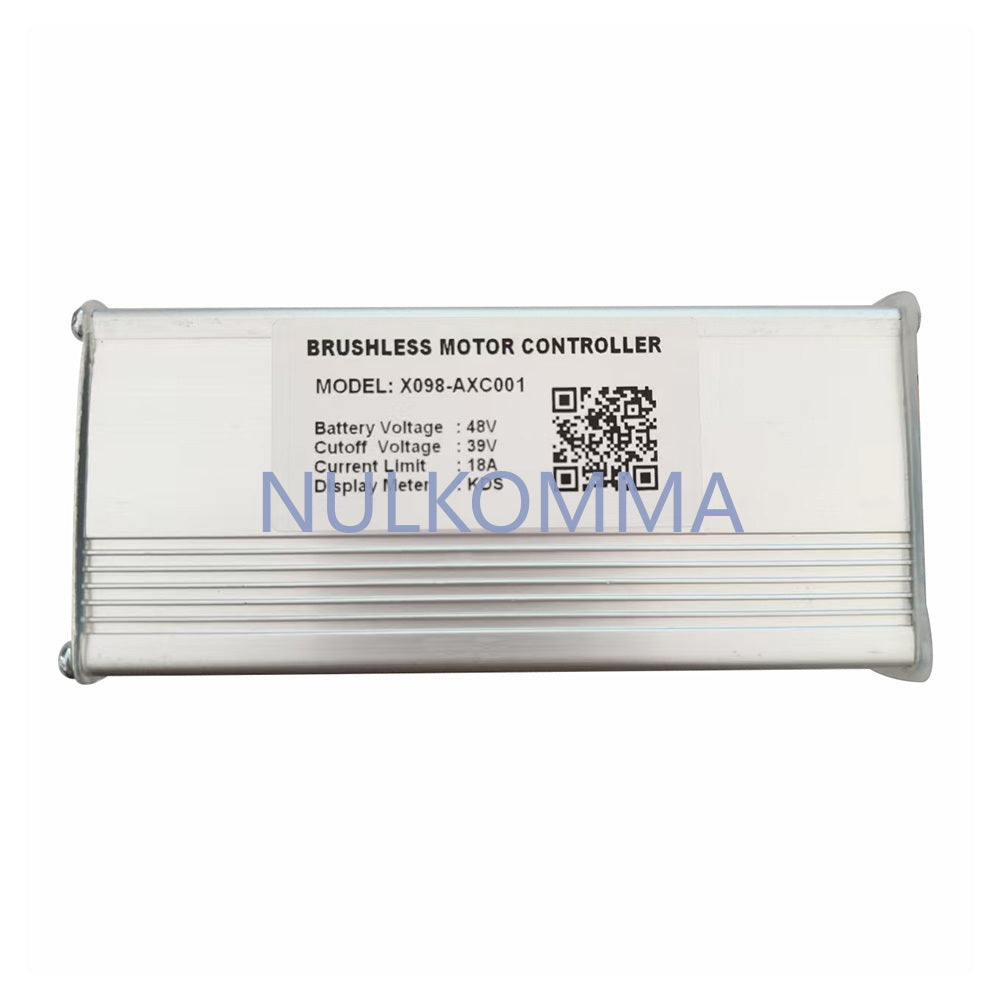

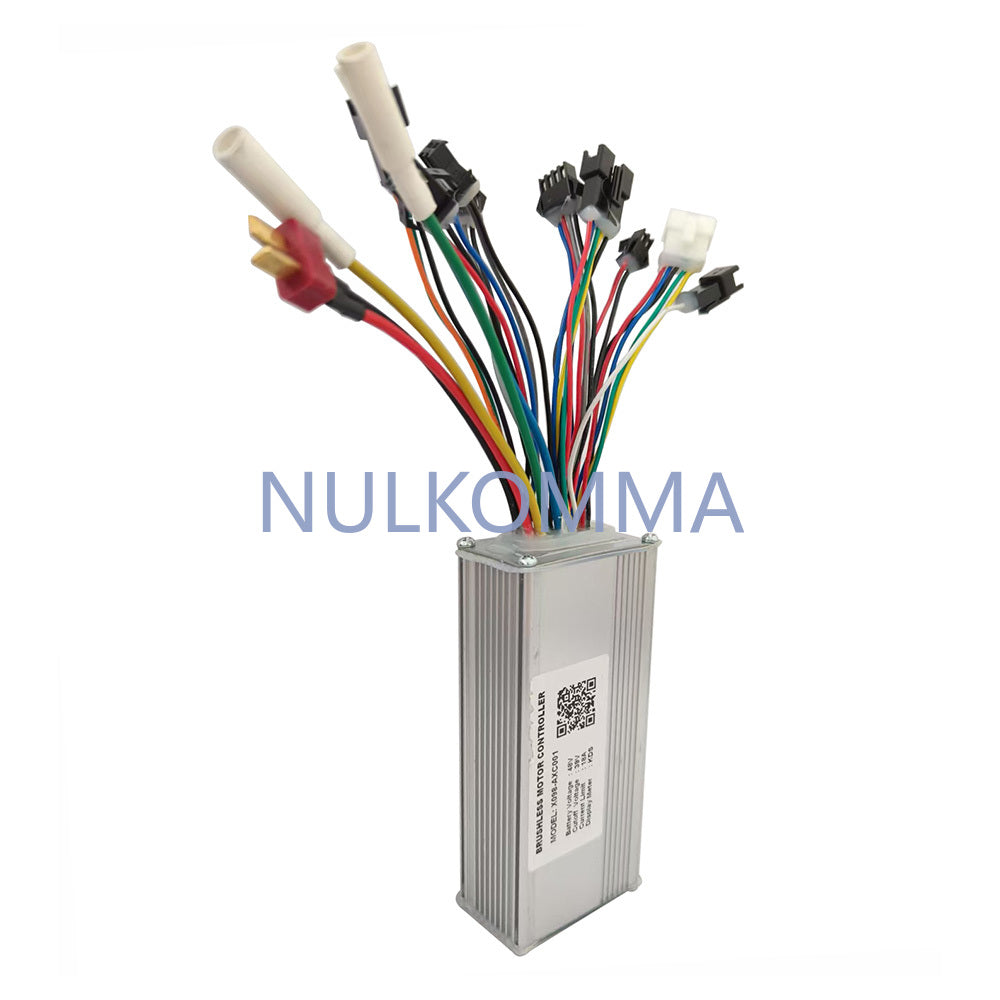

Brushless Motor Controller X098-AXC001 48V 18A Electric Bike Conversion Kit Mountain Bike Accessories For KDS Meter

Description:

    E-bike controller X098-AXC001, for use with KDS communication protocol instruments.

◆Invisible soft/hard start:

Invisible soft/hard start. Squeeze the brake, turn the handle to the end, power up and wait 3 seconds - a soft start (default hard start) with memory, repeat the above operation again to switch to hard start.

◆Invisible single/double Hall booster:

 Invisible single/double hall booster. Squeeze the brake, power up, turn the turnbuckle three times - Dual Hall Boost (default single Hall Boost) with memory, repeat the operation again to switch.

Note: Only match 3-wire power assist sensor.

◆Under voltage protection:

When the battery voltage bottoms out to the under-voltage value of the controller, it stops output automatically to protect the battery in time and prevent the battery pack from being damaged by over-discharge.

◆ Power-on anti-flying and running anti-flying:

Prevent the controller from powering up due to line or turntable failure causing flying phenomenon, improve the safety of using the vehicle.

◆ MOS tube short circuit protection:

Automatically detect MOS tube faults during power-up to prevent damage to other MOS tubes due to serial short-circuiting.

◆High temperature protection:

When the controller's own temperature is too high, it automatically reduces the output current or stops the output

◆ Rotation protection:

When the motor is blocked, the control caps automatically current limiting, blocked when the 2S catty cut off the circuit, timely protection of the motor and the controller.

Specification:

Type：X098-AXC001

Weight: 259g

Current: 18A

Rated Voltage: 48V

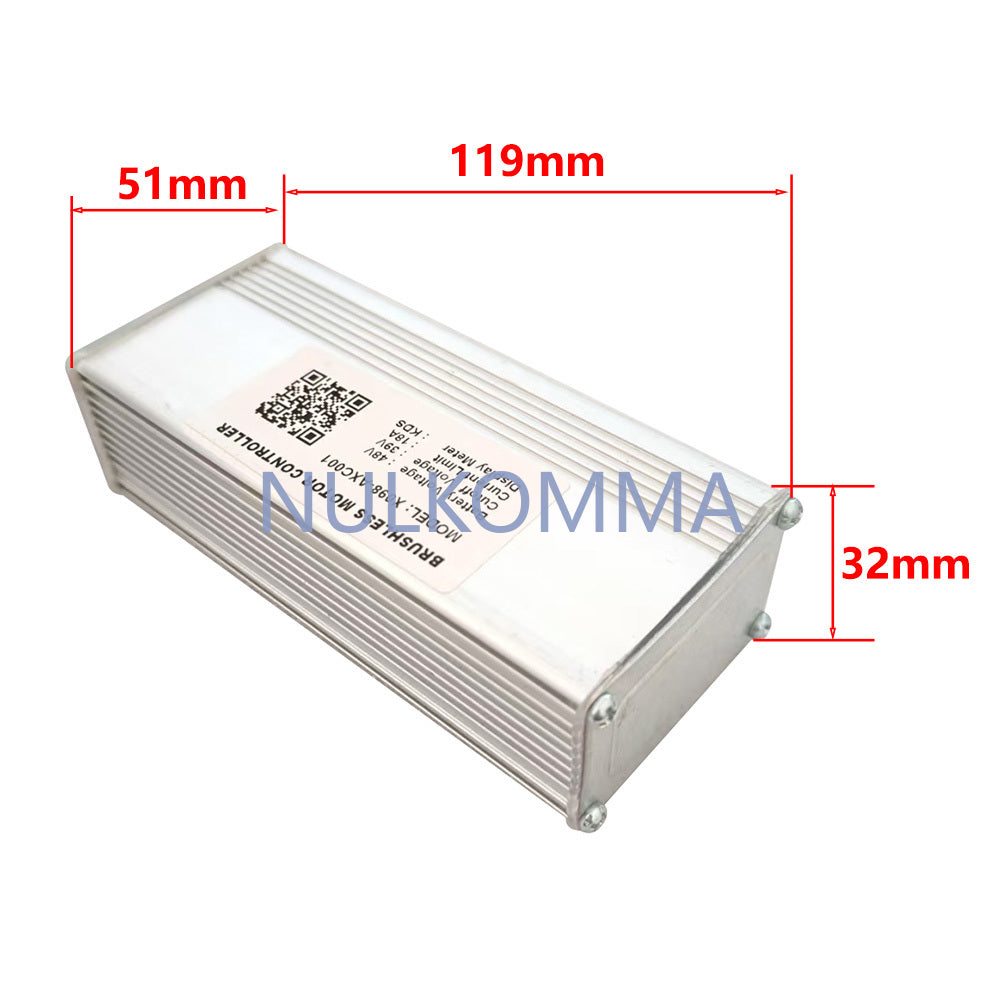

Size: L119mm W51mm H32mm
