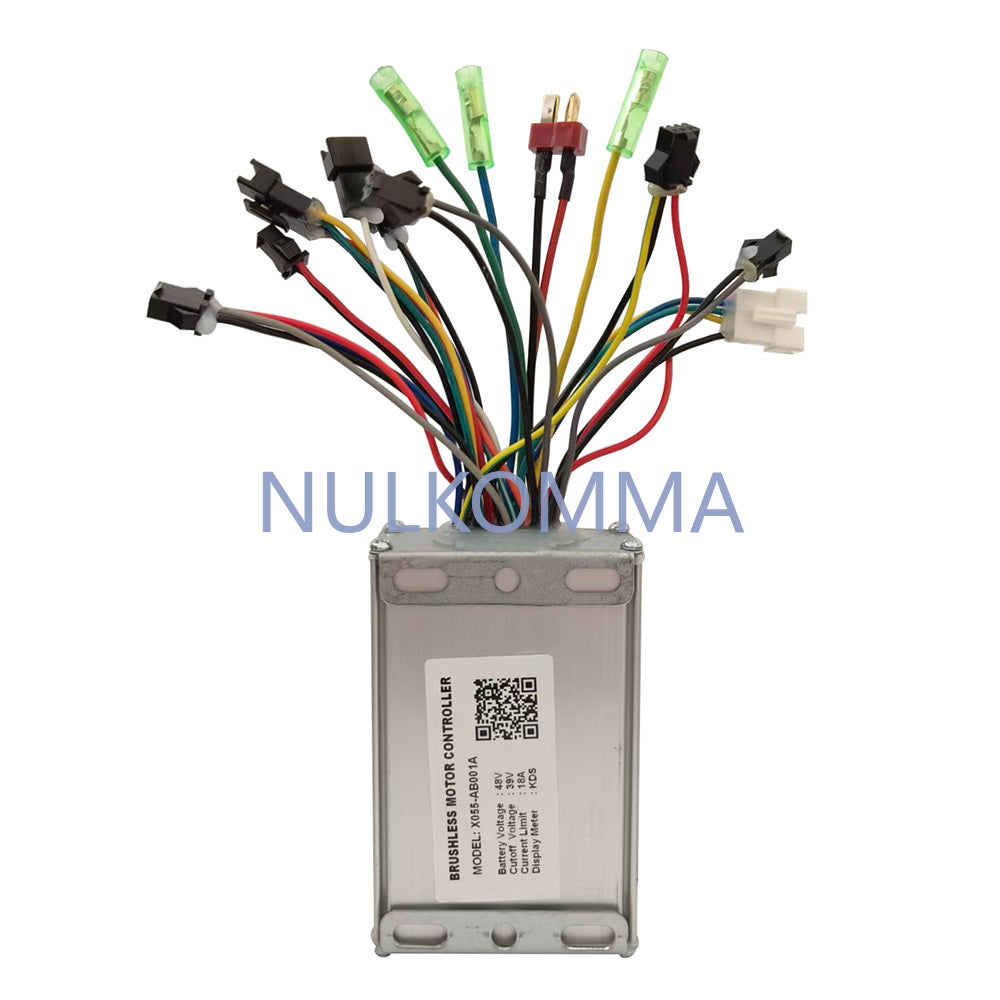

E-Bike Brushless Motor Controller X055-AB001A 48V 18A Electric Bicycle Conversion Kit Mountain Bike Parts For KDS Meter

Description:

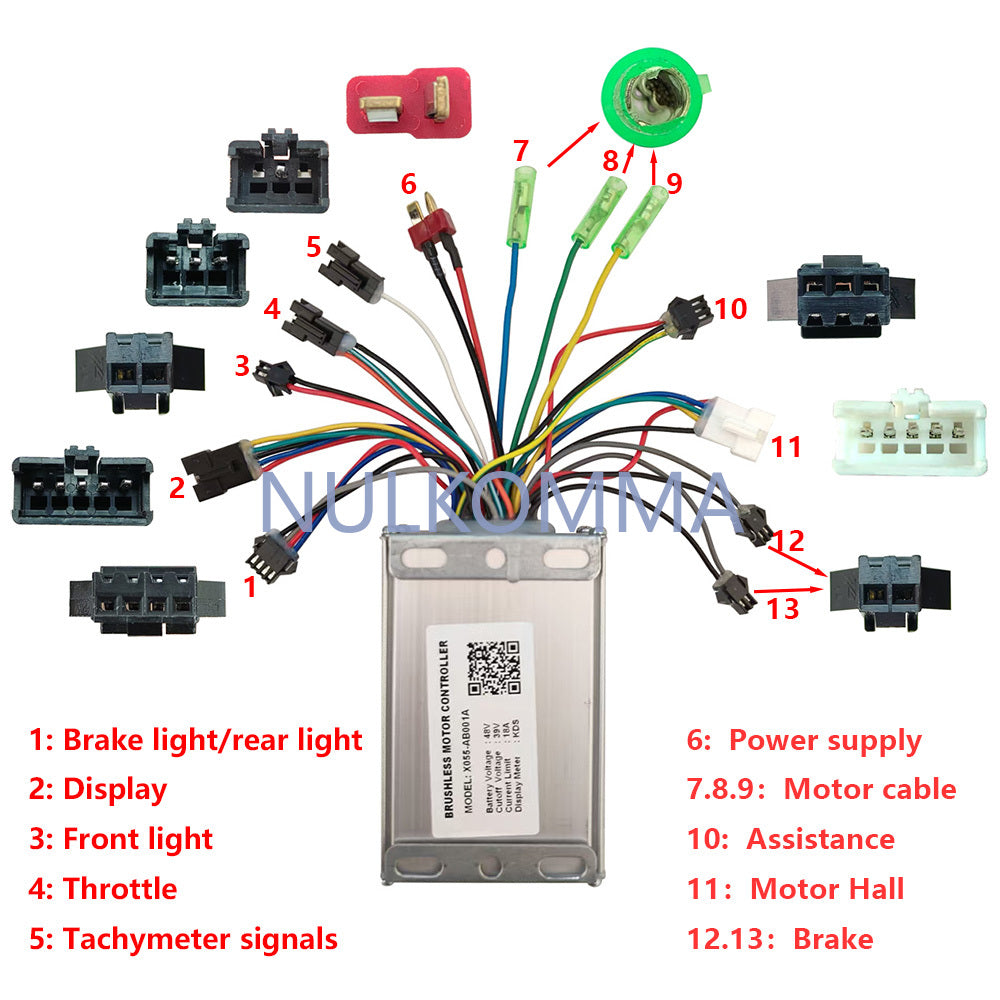

E-bike controller X055-AB001A, for use with KDS communication protocol instruments.



◆Invisible soft/hard start:



Invisible soft/hard start. Squeeze the brake, turn the handle to the end, power up and wait 3 seconds - a soft start (default hard start) with memory, repeat the above operation again to switch to hard start.



◆Invisible single/double Hall booster:



Invisible single/double hall booster. Squeeze the brake, power up, turn the turnbuckle three times - Dual Hall Boost (default single Hall Boost) with memory, repeat the operation again to switch.



Note: Only match 3-wire power assist sensor.



◆Under voltage protection:



When the battery voltage bottoms out to the under-voltage value of the controller, it stops output automatically to protect the battery in time and prevent the battery pack from being damaged by over-discharge.



◆ Power-on anti-flying and running anti-flying:



Prevent the controller from powering up due to line or turntable failure causing flying phenomenon, improve the safety of using the vehicle.



◆ MOS tube short circuit protection:



Automatically detect MOS tube faults during power-up to prevent damage to other MOS tubes due to serial short-circuiting.



◆High temperature protection:



When the controller's own temperature is too high, it automatically reduces the output current or stops the output



◆ Rotation protection:



When the motor is blocked, the control caps automatically current limiting, blocked when the 2S catty cut off the circuit, timely protection of the motor and the controller.



Specification:

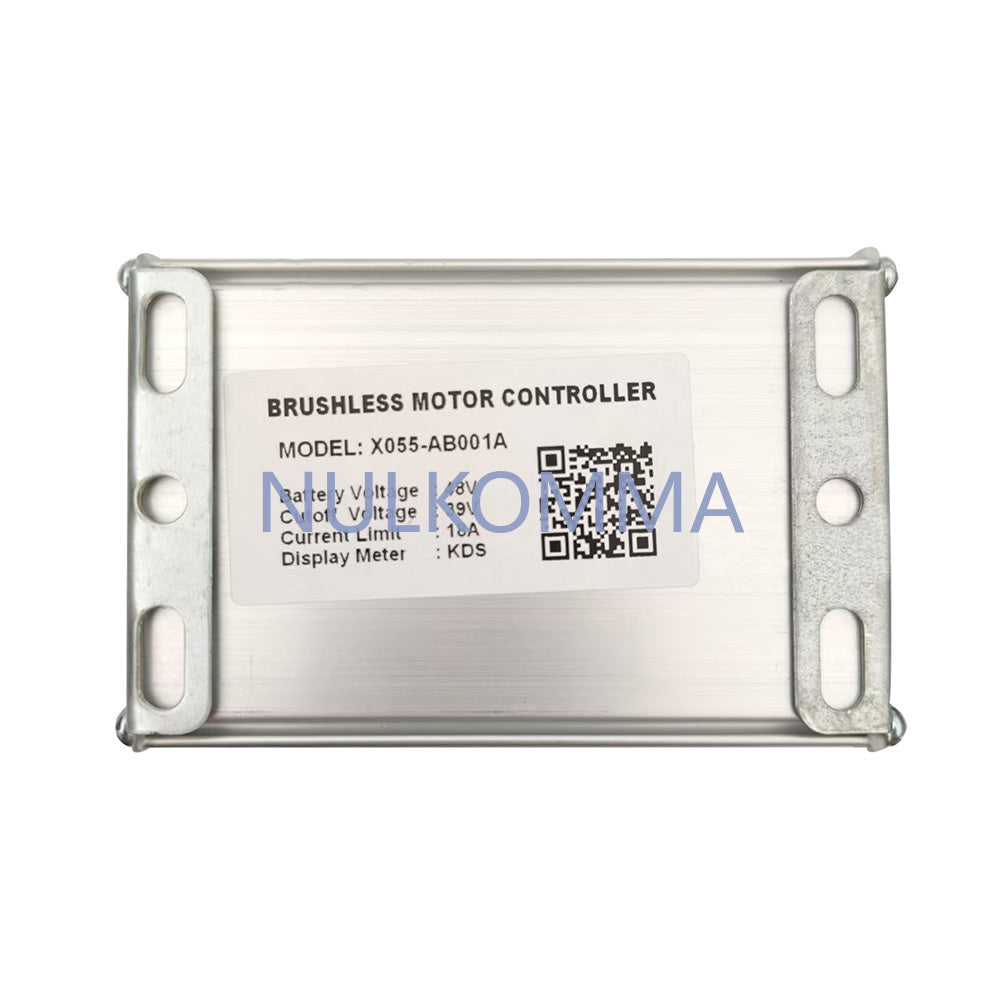

Type：X055-AB001A



Weight: 239g



Current: 18A



Rated Voltage: 48V

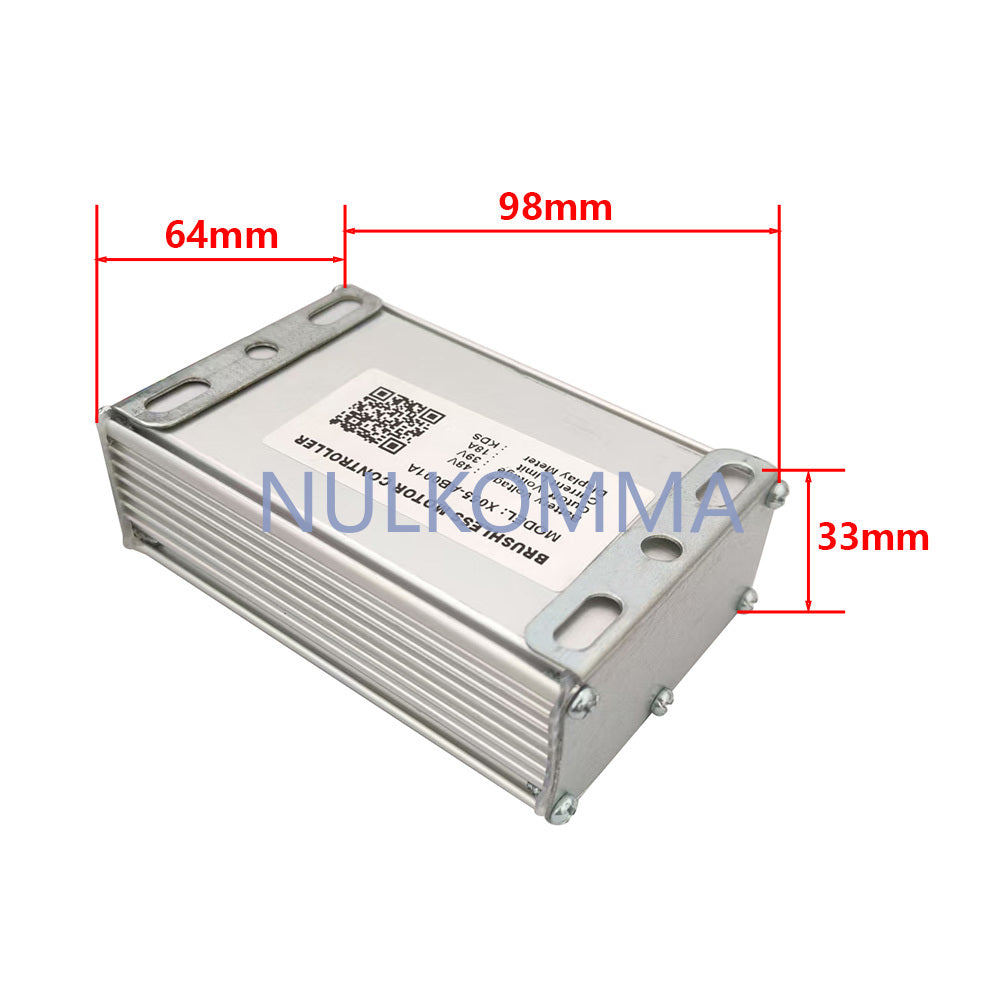

Size: L98mm W64mm H33mm
