NULKOMMA Ebike Brushless Motor Controller X055-AXC001B 48V 23A 5S Display Meter for Ebike MTB Accessories Mid-drive Motor

Description:



E-bike controller X055-AXC001B, for use with 5S communication protocol instruments.



◆Invisible soft/hard start:

Invisible soft/hard start. Squeeze the brake, turn the handle to the end, power up and wait 3 seconds - a soft start (default hard start) with memory, repeat the above operation again to switch to hard start.



◆Invisible single/double Hall booster:

Invisible single/double hall booster. Squeeze the brake, power up, turn the turnbuckle three times - Dual Hall Boost (default single Hall Boost) with memory, repeat the operation again to switch.

Note: Only match 3-wire power assist sensor.



◆Under voltage protection:

When the battery voltage bottoms out to the under-voltage value of the controller, it stops output automatically to protect the battery in time and prevent the battery pack from being damaged by over-discharge.



◆ Power-on anti-flying and running anti-flying:

Prevent the controller from powering up due to line or turntable failure causing flying phenomenon, improve the safety of using the vehicle.



◆ MOS tube short circuit protection:

Automatically detect MOS tube faults during power-up to prevent damage to other MOS tubes due to serial short-circuiting.



◆High temperature protection:

When the controller's own temperature is too high, it automatically reduces the output current or stops the output



◆ Rotation protection:

When the motor is blocked, the control caps automatically current limiting, blocked when the 2S catty cut off the circuit, timely protection of the motor and the controller.



Specification:

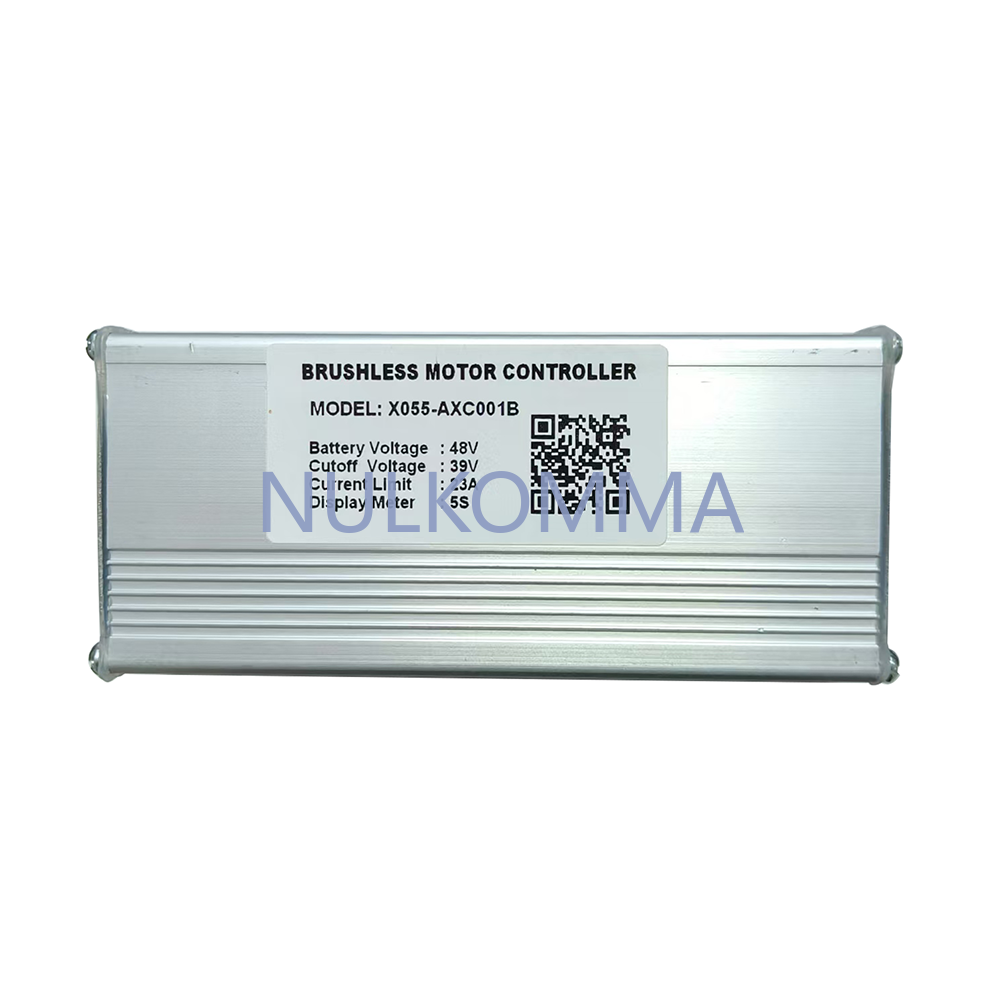

Type： X055-AXC001B



Weight: 260g



Current:23A



Rated Voltage: 48V

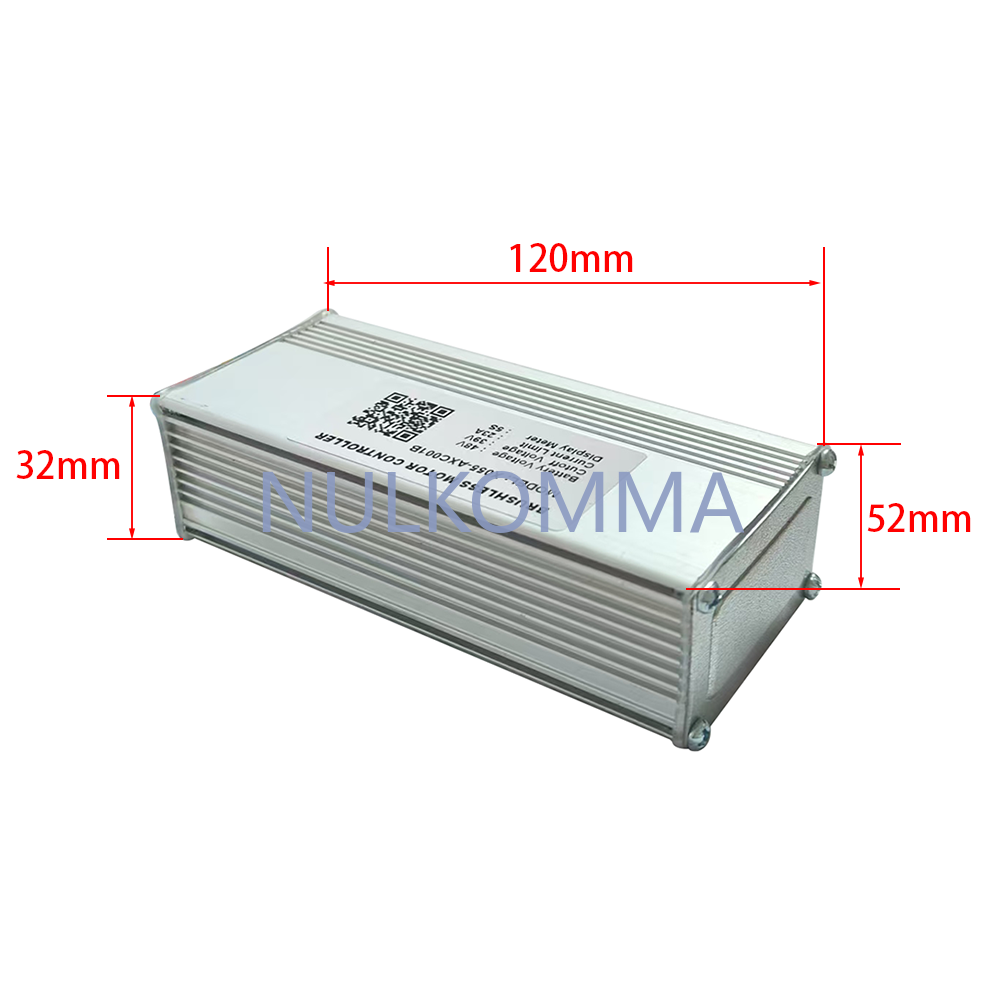

Size: L120mm W52mm H32mm



Packing:



1*Brushless motor controller
