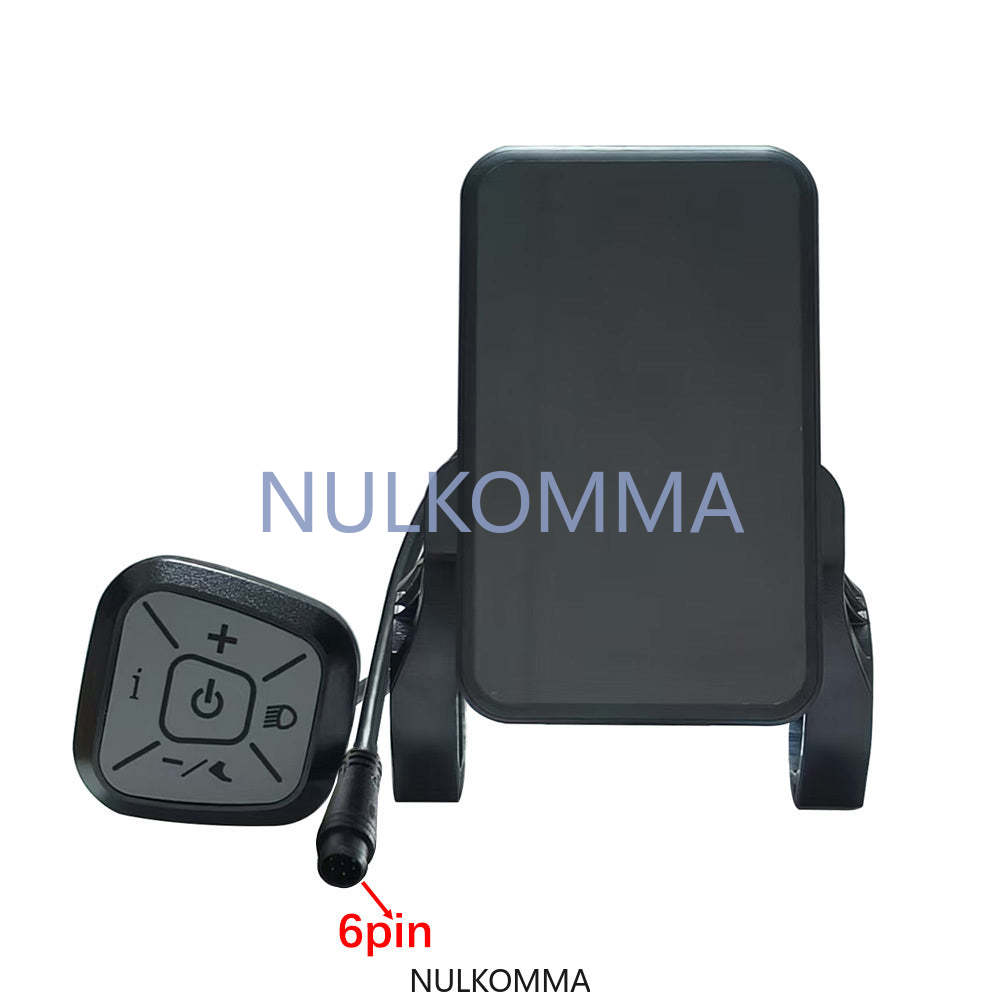

NULKOMMA EBike Display Screen Meter Speed Control Panel YL81F 6Pin 36V 48V 52V Speedometer for Electric Bicycle Accessories

Product Purchase Notes:

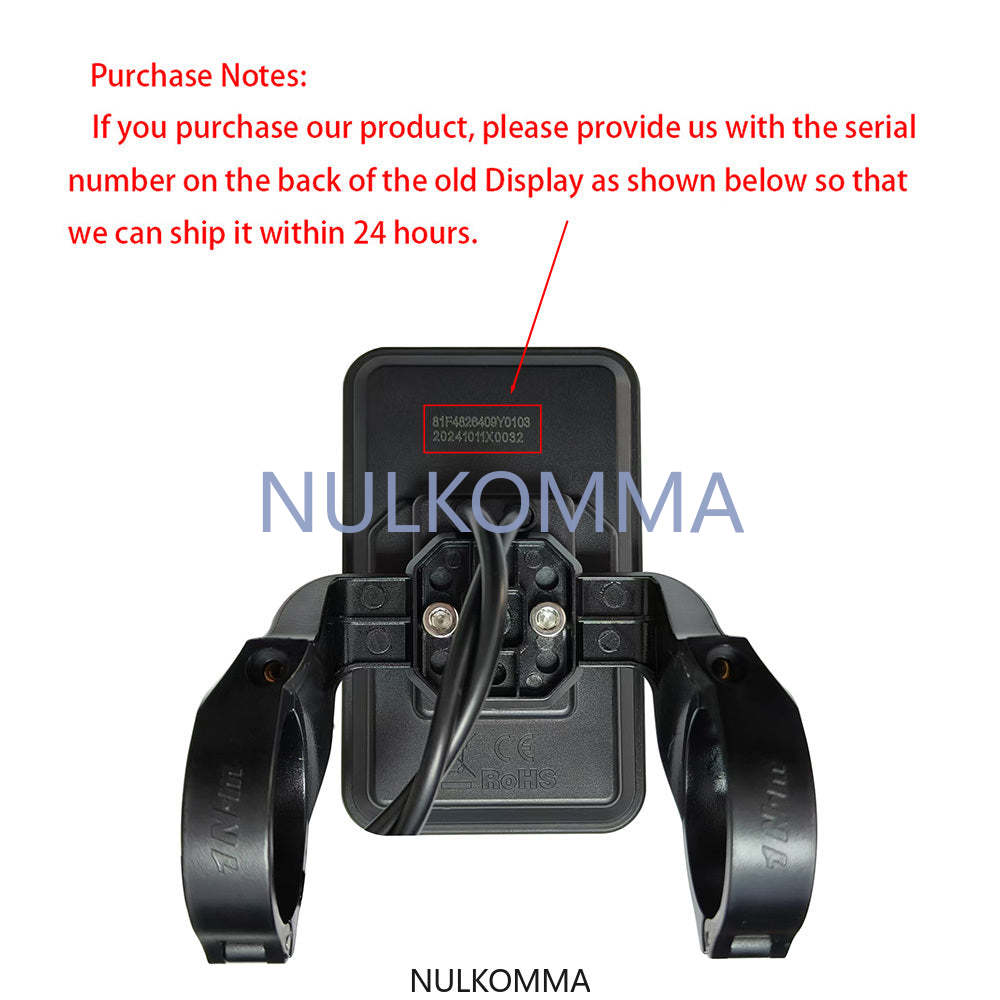

YL81F color LCD display, different brands of e-bikes have different LCD protocols, please contact our online customer service to determine the LCD protocol you need before purchasing, if you do not determine the LCD protocol with our online customer service, the display you purchase may not match your e-bike! This is very important! Please contact us!





Description:





Smart LCD Bezel-less Meter for E-bike, Default Li-Ion II Protocol





Model: YL81F-K6-6pin

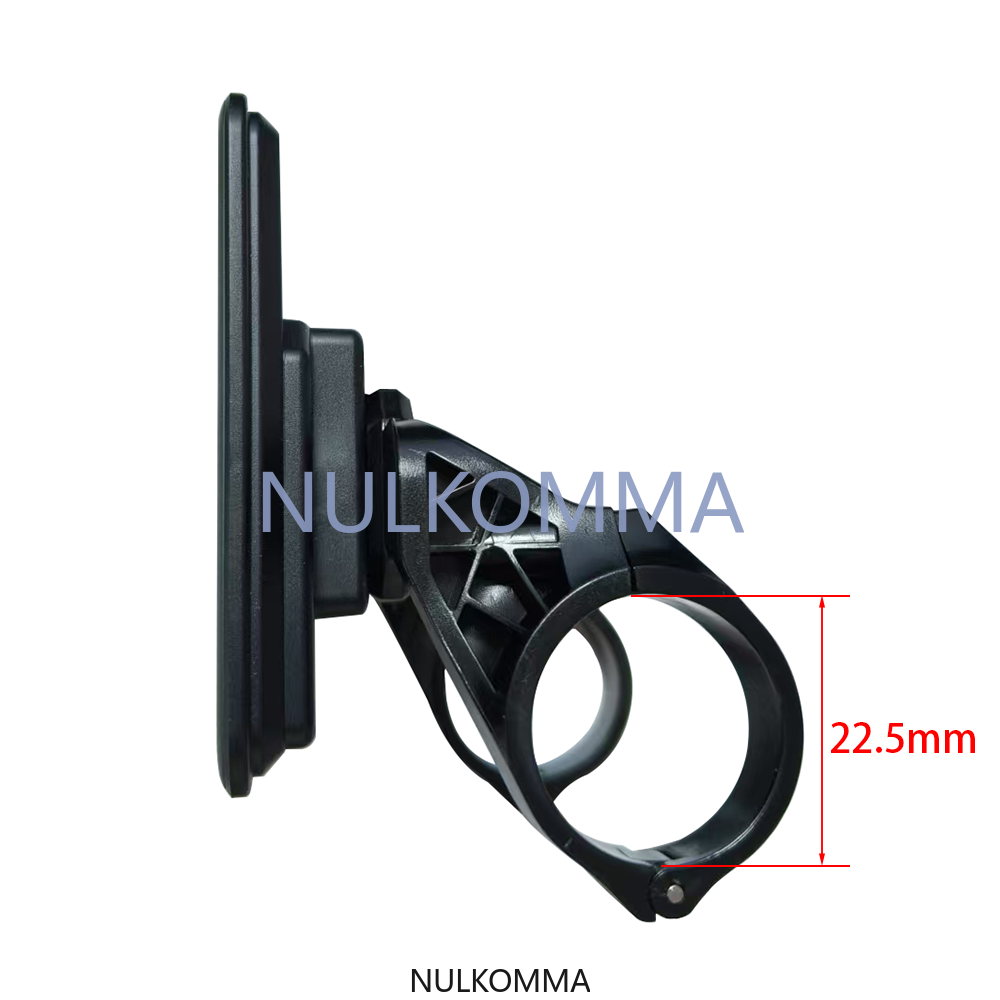

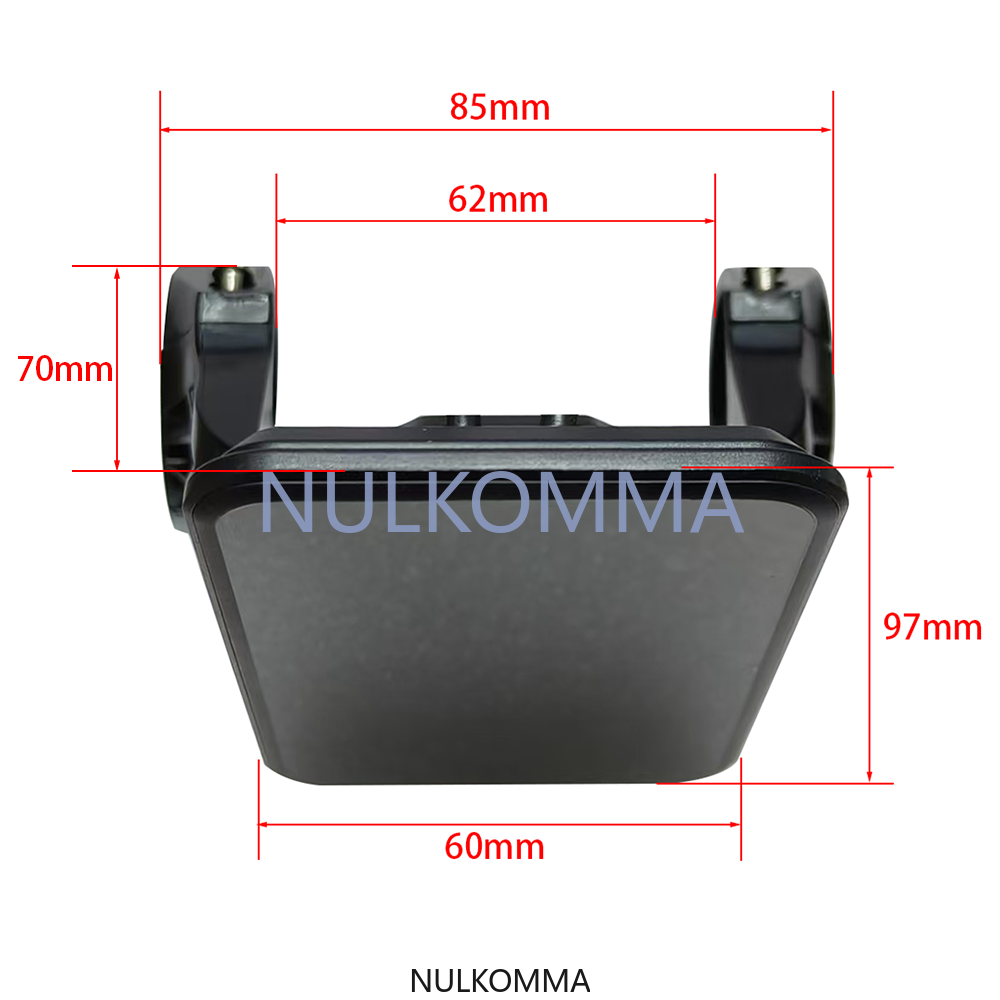

Size: 95*59.5*70 mm





Weight: 250 grams





Voltage: 36V/48V/52V Power Supply





●Meter rated operating current 15mA

●Maximum instrument operating current 30mA

●Shutdown leakage current

●Power supply current to controller 50mA

●Operating temperature -20～60℃

●Storage temperature -30～70℃Function

●Level display

●Auxiliary gear adjustment and indication

●Speed display (including real-time speed, maximum speed, average speed)

●Level display

●Auxiliary gear adjustment and indication Speed display (including real-time speed, maximum speed, average speed)

●Mileage display (including single mileage, total mileage)

●Auxiliary actuator control and display Headlight control and display

●Fault code display

●Motor power display

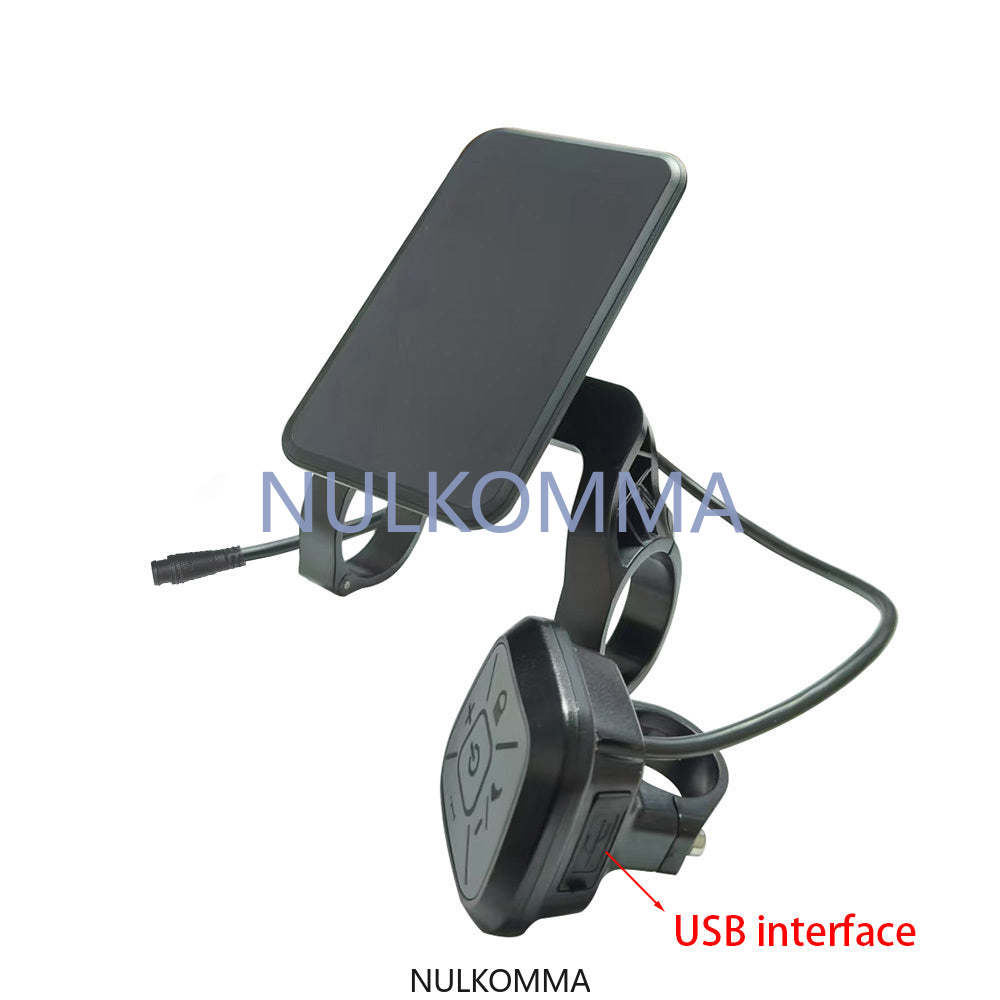

●USB connection display

●Cruise display

●Personalized parameter setting (e.g. wheel diameter, speed limit, vehicle speed, etc.)

●Vehicle speed display Personalized parameter settings (e.g. wheel diameter, speed limit, battery power setting and supercharger parameter setting, power-on password setting, controller current limit setting, etc.)

●Factory default parameter recovery function





Package:



     1*LCD display
