EBike Display Screen Meter VINKA KD58C 36V/48V 6pin Waterproof Connector MTB Accessories Bicycle Speed Control Panel

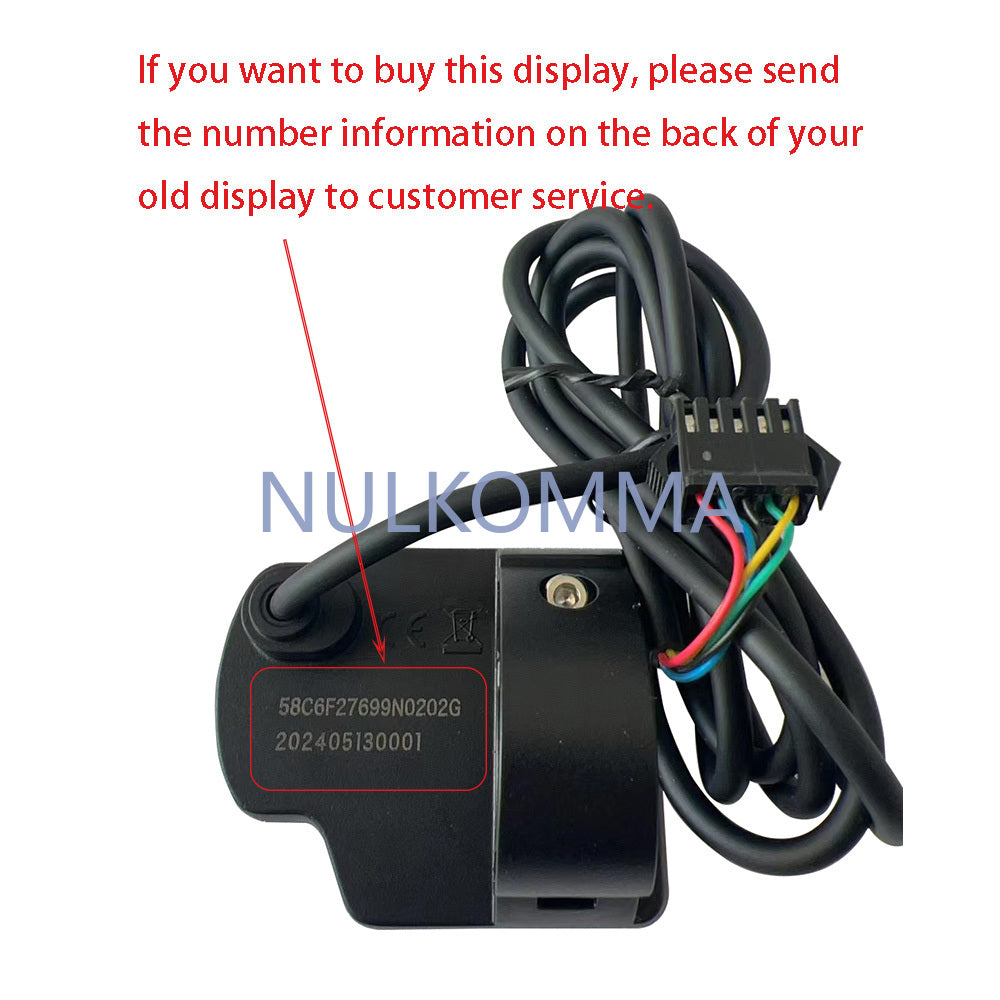

This KD58C Display features a 6-pin waterproof connector with a rated voltage of 36V/48V, compliant with the Wanjia protocol. Please contact our online customer service before and after purchase to provide us with the serial number on the back of your display. We will assist you in confirming whether your display program is compatible with ours.

Settings Information:

1. Backlight Brightness: Adjustable from 1 to 5 levels, with level 5 being the brightest.

2. Metric/Imperial Units: Default metric units.

3. Key-Assisted Throttle: Key-activated throttle with a 6 km/h speed limit.

4. Wheel Diameter: Controlled by the controller.

5. Throttle Range: Controlled by the controller (with memory function).

6. Speed Limit: Controlled by the controller.
