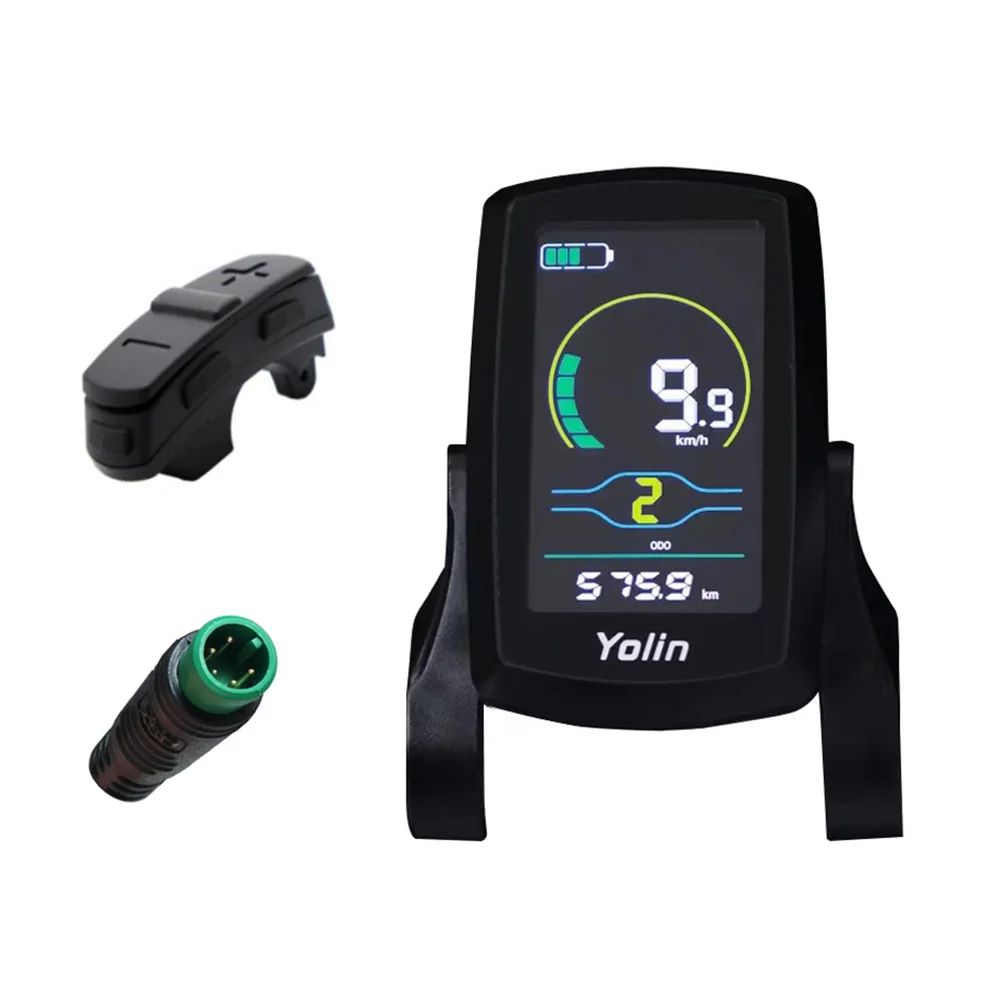

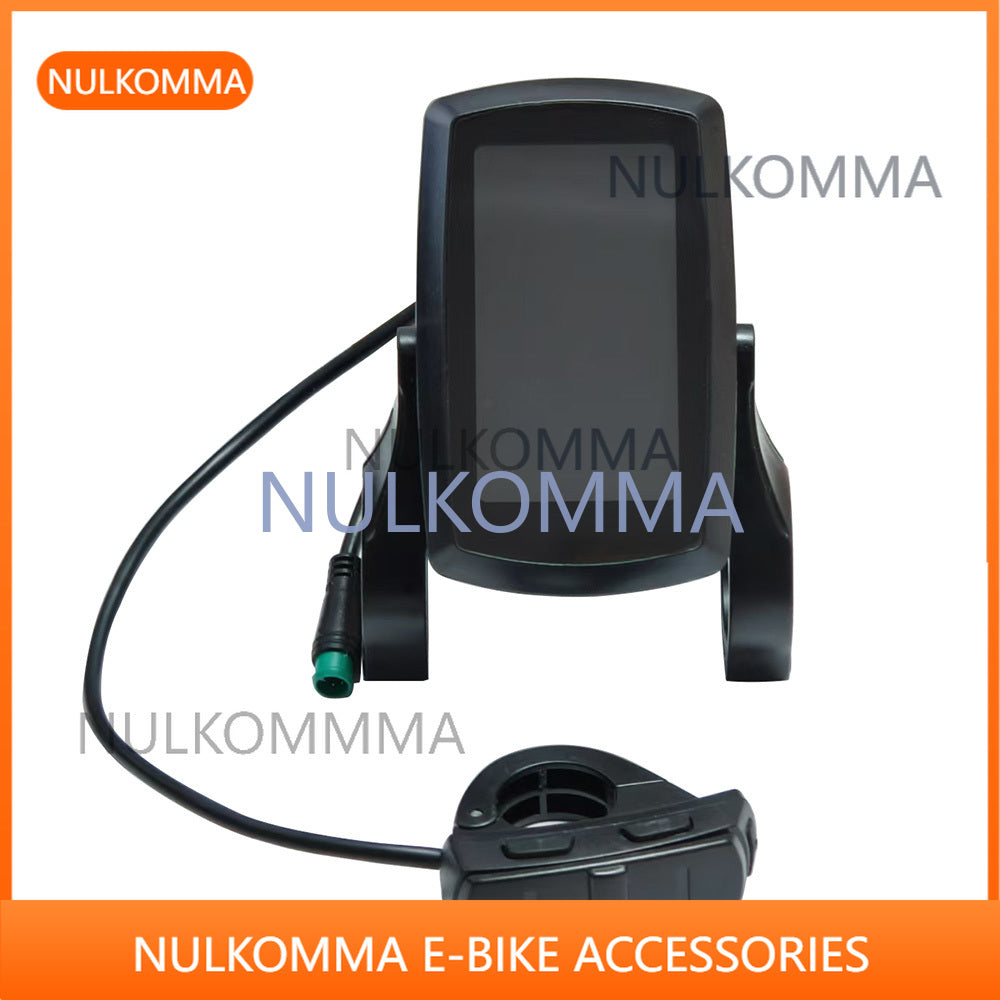

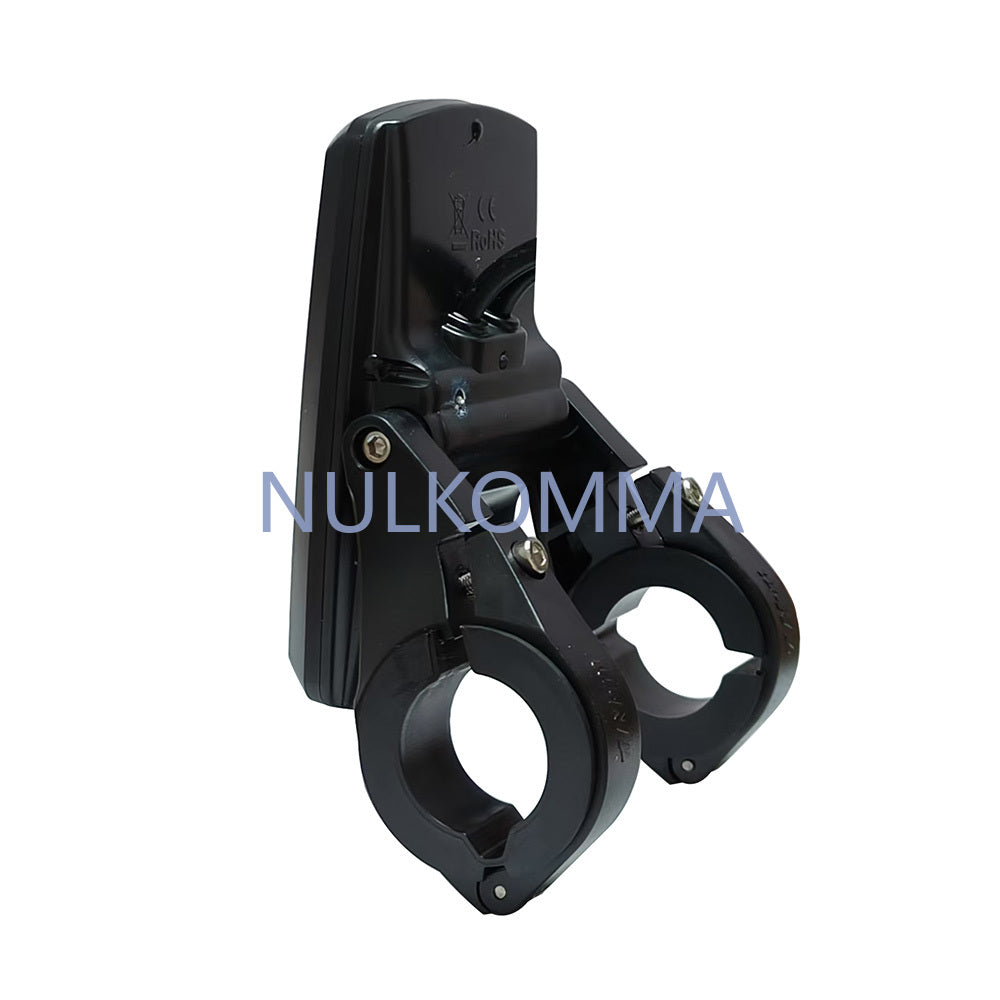

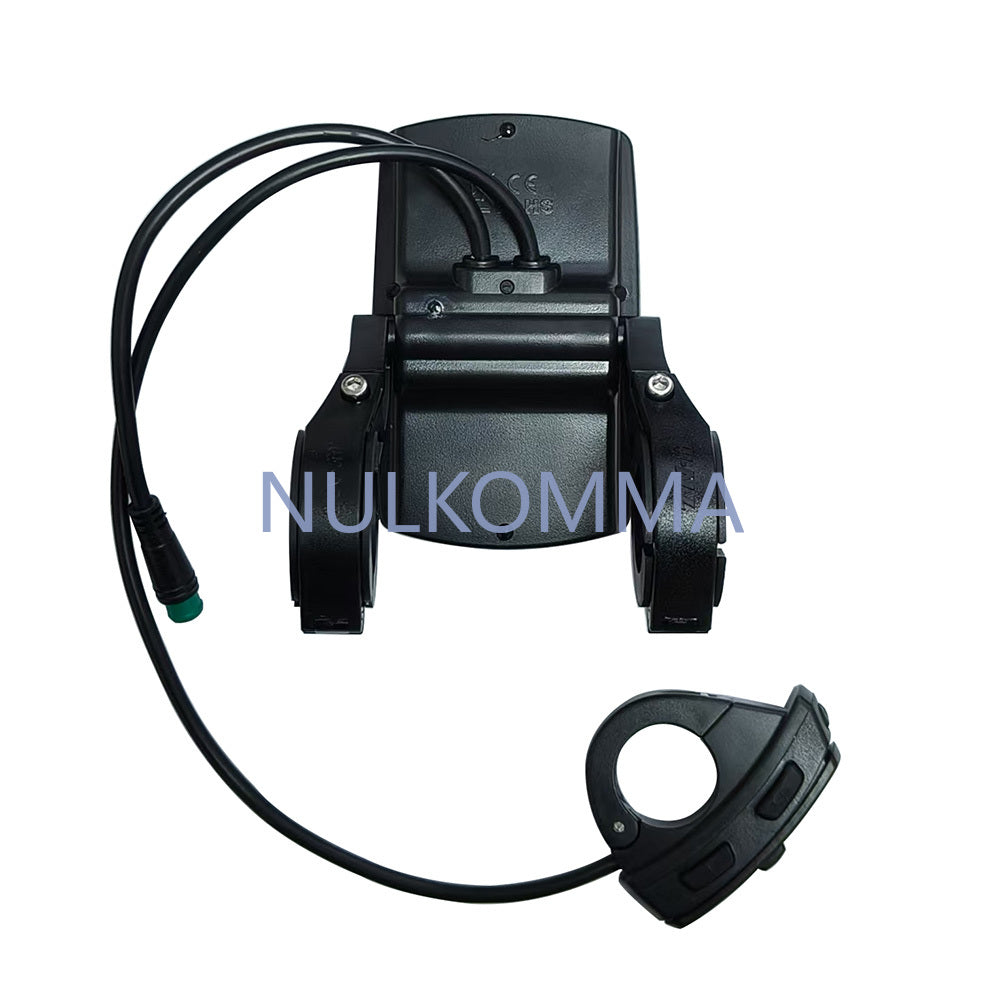

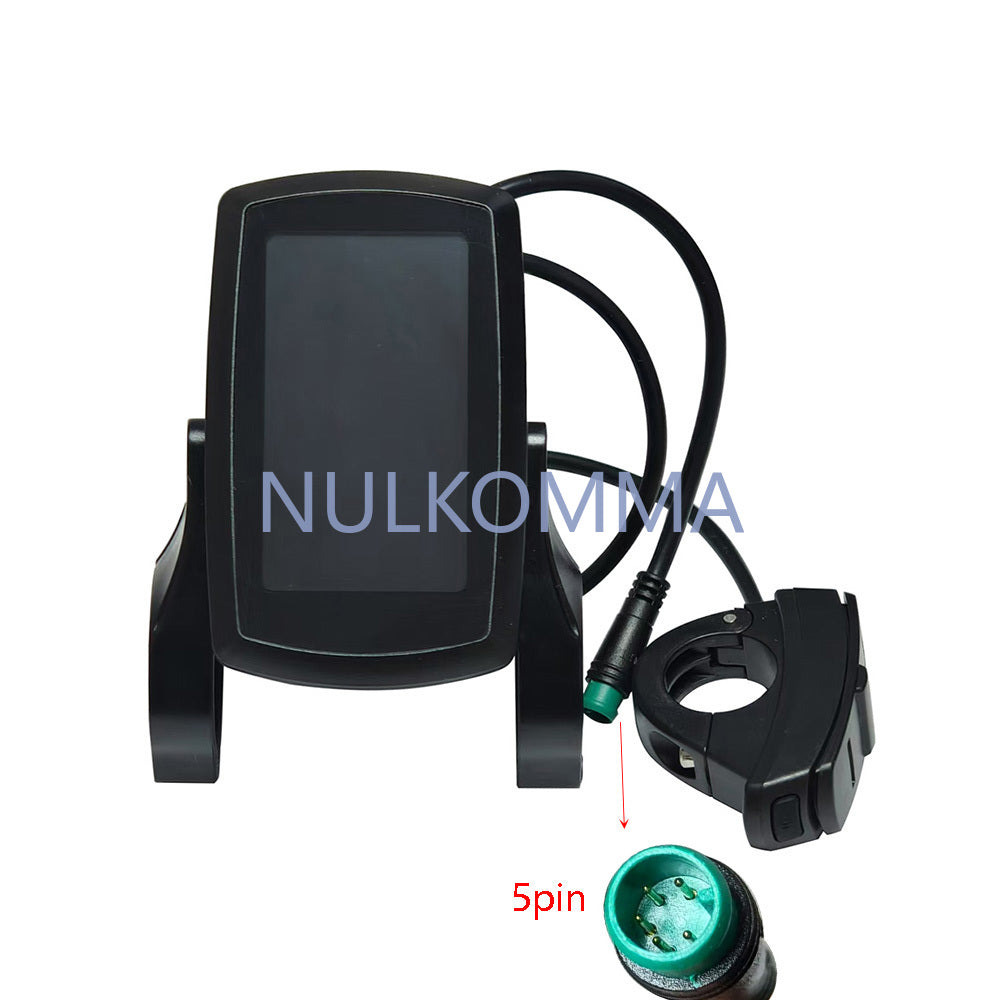

EBike Display Screen Meter YL80C 36V 48V 52V 5Pin Speed Control Panel for ENGWE Bike Fat Tire Controller Yolin Conversion Kit

Purchase Note:

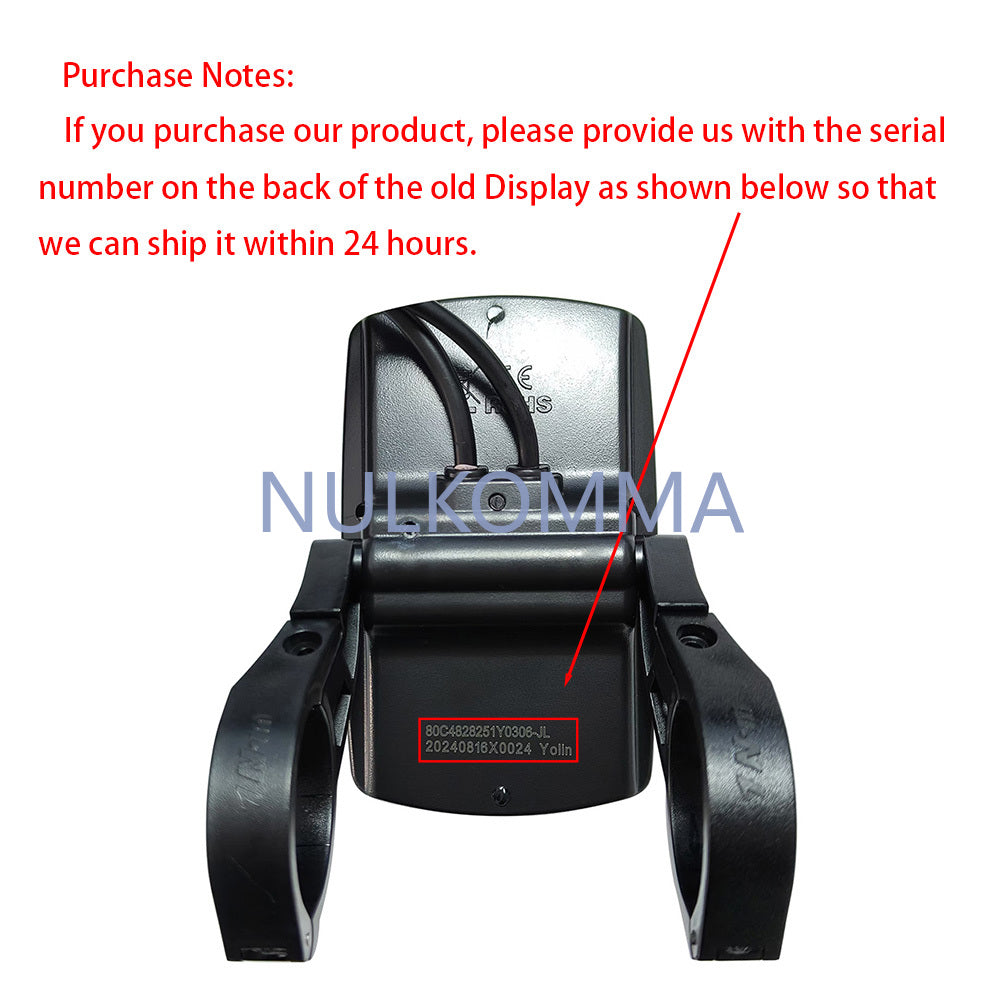

     This e-bike display YL80C has a variety of communication protocols, in order to ensure that you can receive plug-and-play display, please consult our customer service before/after the purchase, the serial number on the back of your display sent to our customer service, customer service will be good for the record, our engineers will be based on the serial number of your display to customize a new display for you!





Specifications:



●36V/48V power supply



●Meter rated operating current 15mA



●Maximum operating current 30mA



●Shutdown leakage current <1uA



●Supply working current to controller 50mA



●Operating temperature -20～60℃



●Storage temperature -30～70℃



Function Overview:



     The YL80C model meter provides a variety of functions to meet your riding needs, including:

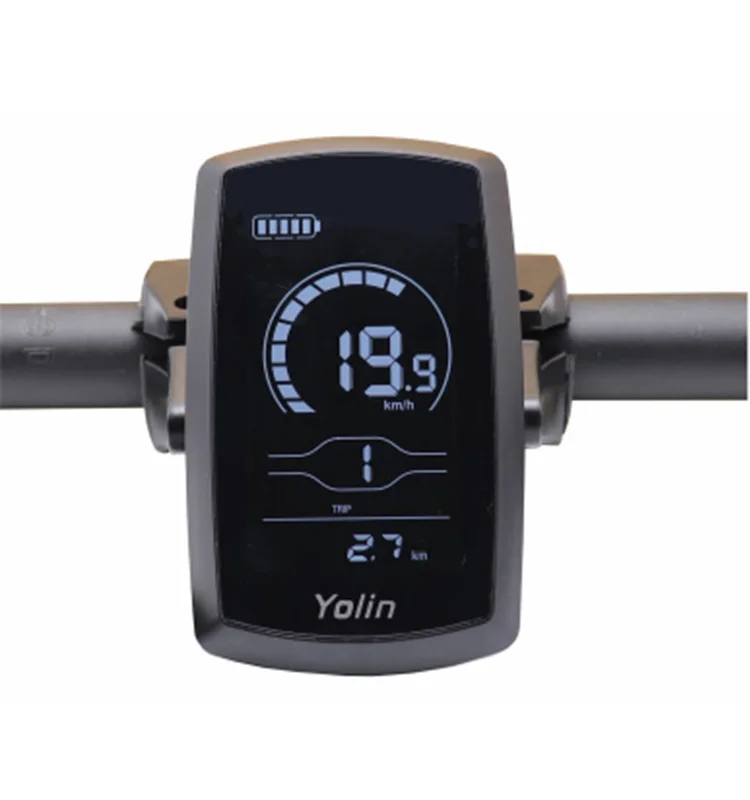

●Power indication



●Motor power indication



●Assisted gear adjustment and indication



●Speed display (including real-time speed, maximum speed, average speed)



●Mileage display (including single mileage and total mileage)



●Assisted push control and indication



●Headlight control and display



●Error code display



●USB connection indication (reserved)



●Heart rate display (reserved)



●Bluetooth connection indication (reserved)



●Personalized parameter settings (e.g. wheel diameter, speed limit, battery power setting and booster parameter setting, power-on password setting, controller current limit setting, etc.)



●Default parameter restoration function

1.General Setting



     The following options are available in the general setting item selection interface:



1.1 Single Mileage Zero Setting



     tC is the single mileage zero setting option, parameter tC-n means not to zero the single ride mileage, parameter tC-y means to zero the single ride mileage.



1.2 Backlight Brightness Setting



     bL is the backlight brightness setting option, parameter bL-1, bL-2, bL-3 can be set to indicate the backlight brightness, 1 is the dimmest, 2 is the standard brightness, 3 is the brightest.



1.3 Metric/Imperial Unit Setting



     Un is the metric/imperial unit setting option, U-1 stands for imperial system, U-2 stands for metric system.



2. General Parameter Settings



2.1 Wheel Diameter Setting



     Ld is the wheel diameter setting option, the available values are: 8-26, 700C, 28-30inch.



2.2 Speed Limit Setting



     LS is the speed limit setting option, change this value to set the maximum riding speed of the e-bike; the available range of the maximum speed setting value is between 12Km/h and 40Km/h.



3. Personalized Settings



     The content includes: battery power setting, power parameter setting, current limit value setting, power sensor setting, speed sensor setting, turn handle function setting, system setting and power-on password setting of the instrument, a total of eight settings. The personalized settings of the YL80C instrument are not supported by all protocols, and some of the protocols only support some of the setting items.
