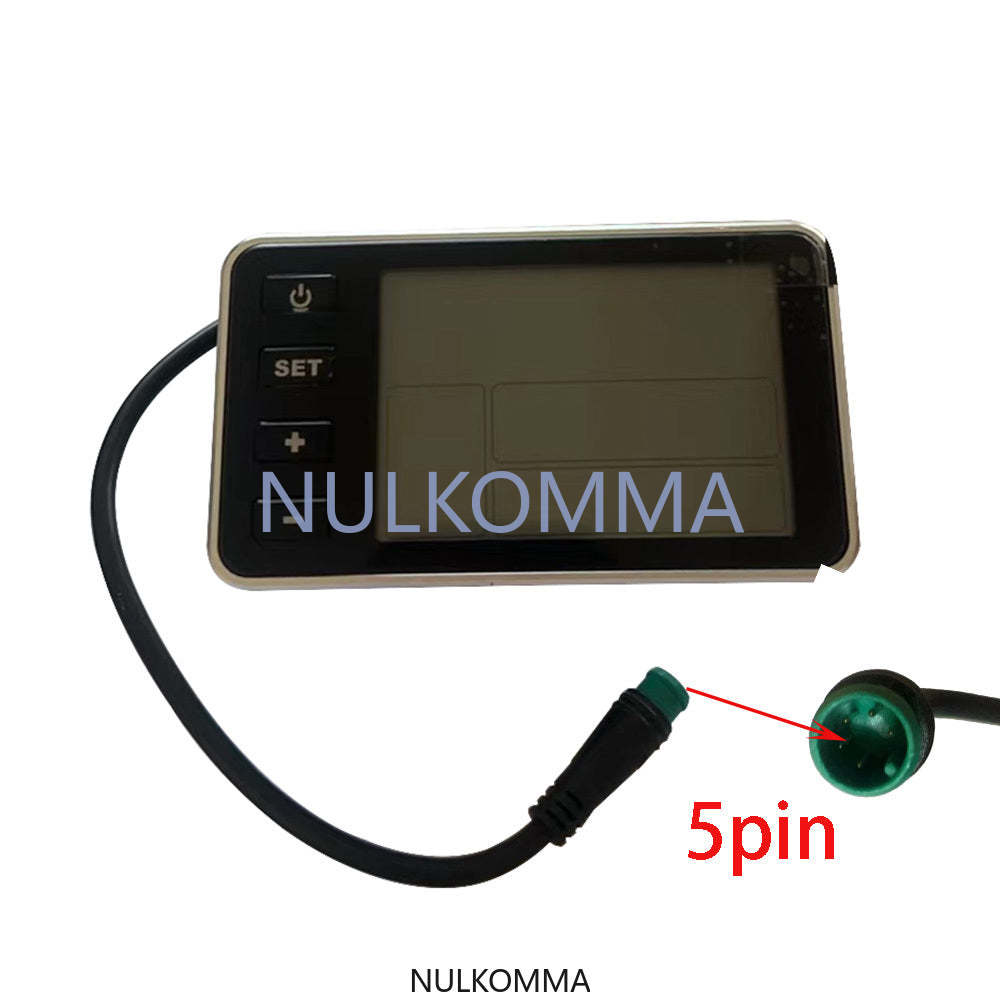

Ebike LCD Display Screen Meter Speed Controller C500B UART/CAN 36V 48V For MTB Electric Bicycle Modified Accessories

Description:





This C500B LCD Display has a variety of communication protocols, please contact our online customer service to send us the basic information of the original product before/after purchase so that we can ship it accurately and quickly.





Product Information:





Installation Parameters:



- Communication method: UART/CAN

- Dimensions: 98/55/45mm

- Handlebar size: 22mm



Core data:



- Screen: LCD

- Display Type: FSTN

- Rated Voltage: 24/36/48V

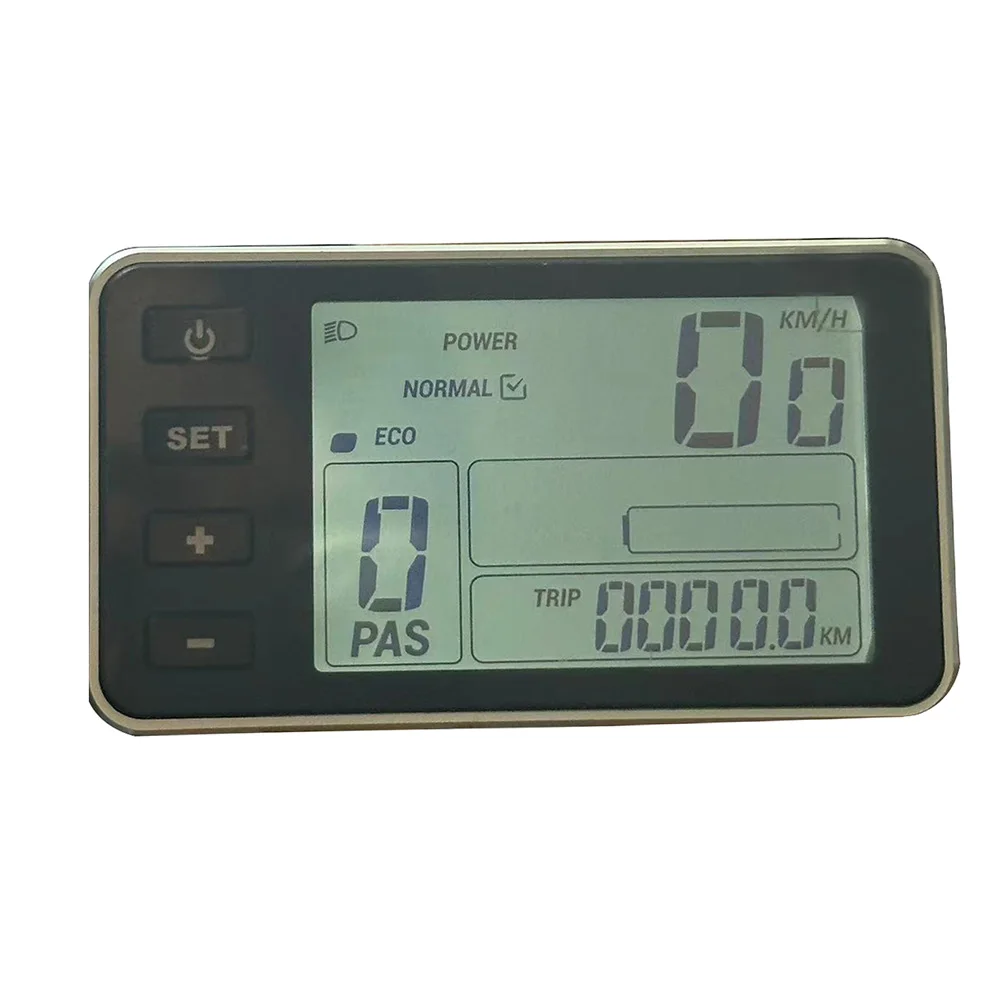

Display Information:



              On/Off, Current Display, Riding Mode Selection, Speed Display (supports km/h and mph), Backlight Indication, 6km/h Operating Indication, Power Level Selection, Fault Code Indication, Setting Operation, Distance Indication, Trip Time Indication, Battery Indication, Mobile Phone Charging Indication, and Autosleep after 5 minutes.

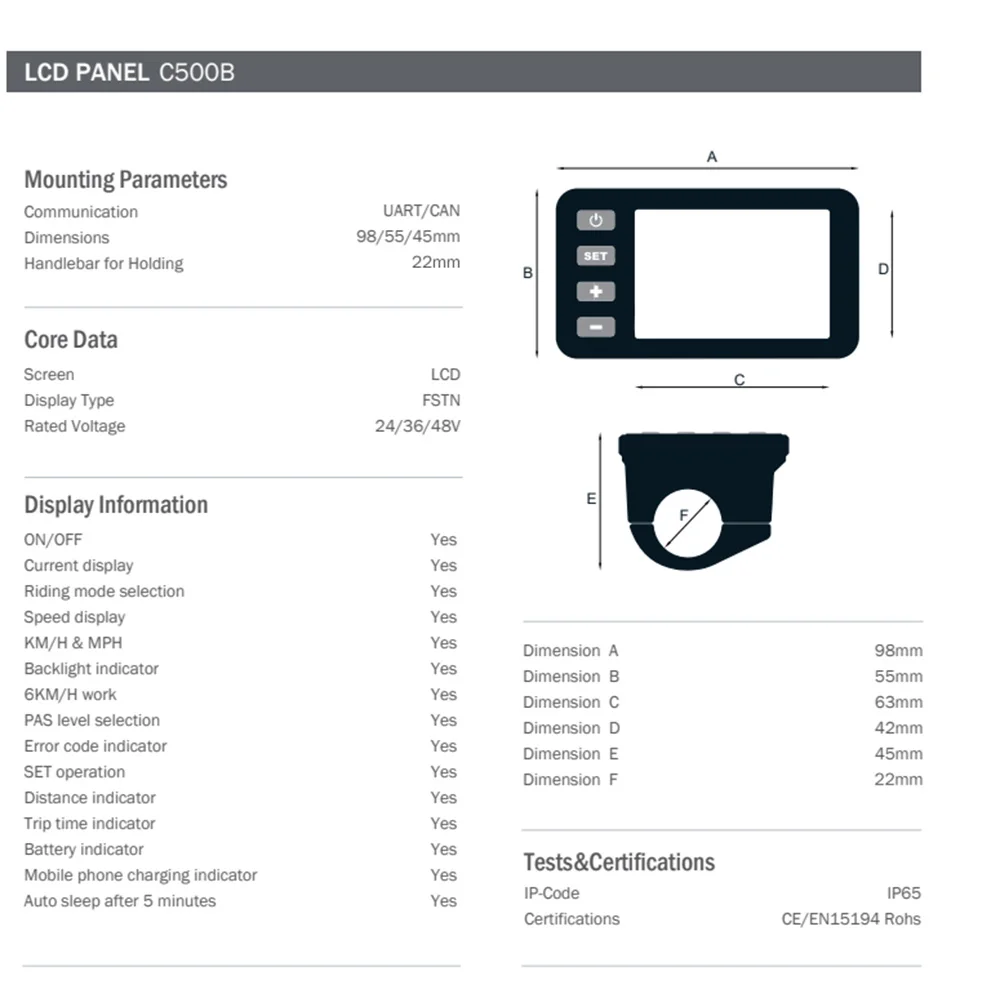

Dimension specification:



- Dimension A: 98mm

- Dimension B: 55mm

- Dimension C: 63mm

- Dimension D: 42mm

- Dimension E: 45mm

- Dimension F: 22mm



Testing and Certification:



- Protection rating: IP65

- Certifications: CE/EN15194, RoHS.





Packaging:





           1*display
