NULKOMMA Electric Bike Brushless Motor Controller 48V 18A X098-AXC013 Electric Scooter Accessories for 2HAO Meter

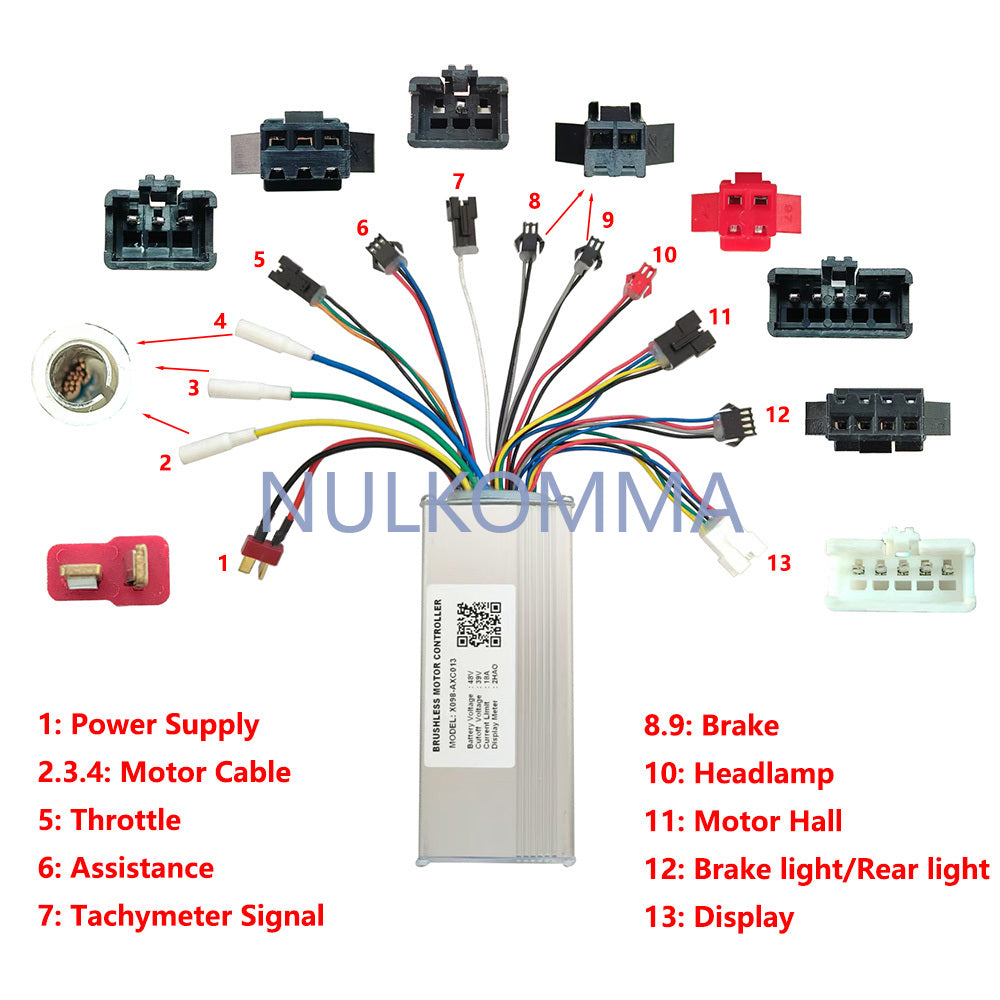

    X098-AXC013 E-bike controller for use with 2HAO display communication protocol instruments.



Controller specifications:



Model: X098-AXC013

Weight: 260 grams

Current: 18ARated

voltage: 48V

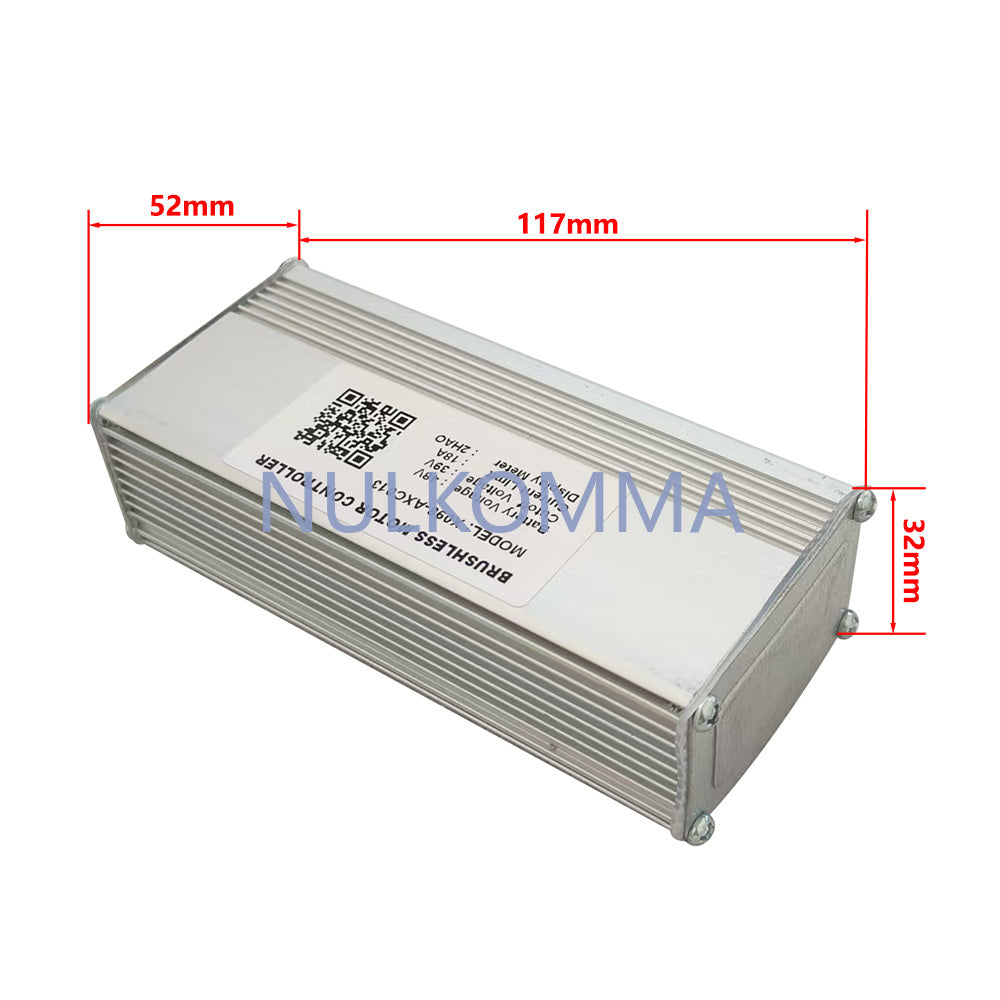

Size: L 117mm W 52mm H 32mm



◆ Invisible soft/hard start:



Invisible soft/hard start. Tighten the brake, turn the handle to the bottom, turn on the power and wait for 3 seconds - smooth start (default is hard start), with memory function, repeat the above operation to switch to difficult start.





◆ Invisible Single/Dual Hall Amplifier:



Invisible single/dual Hall amplifier. Apply the brake, turn on the power, turn the loop three times - Dual Hall Boost (default is only Hall Boost) with memory function, repeat the above operation to switch.Note: Only for 3-wire booster sensor.





◆ Power protection:



When the battery voltage drops to the under-voltage value of the controller, the output will be stopped automatically to protect the battery in time and prevent the battery from being damaged due to overcharging.





◆ Anti-stealing power on and anti-stealing power on:

Prevent the controller from being turned on due to line or turntable failure, resulting in theft phenomenon, and improve vehicle safety.





◆ MOS tube short circuit protection:



Automatically detect the defects of MOS tubes when power on to avoid damaging other MOS tubes due to serial short circuit.





◆ High temperature protection:



When the controller temperature is too high, it will automatically reduce the output current or stop output.





◆ Rotation protection:



When the motor is blocked, the controller automatically limits the current and cuts off the circuit in 2S when the motor is blocked, so as to quickly protect the motor and the controller.
