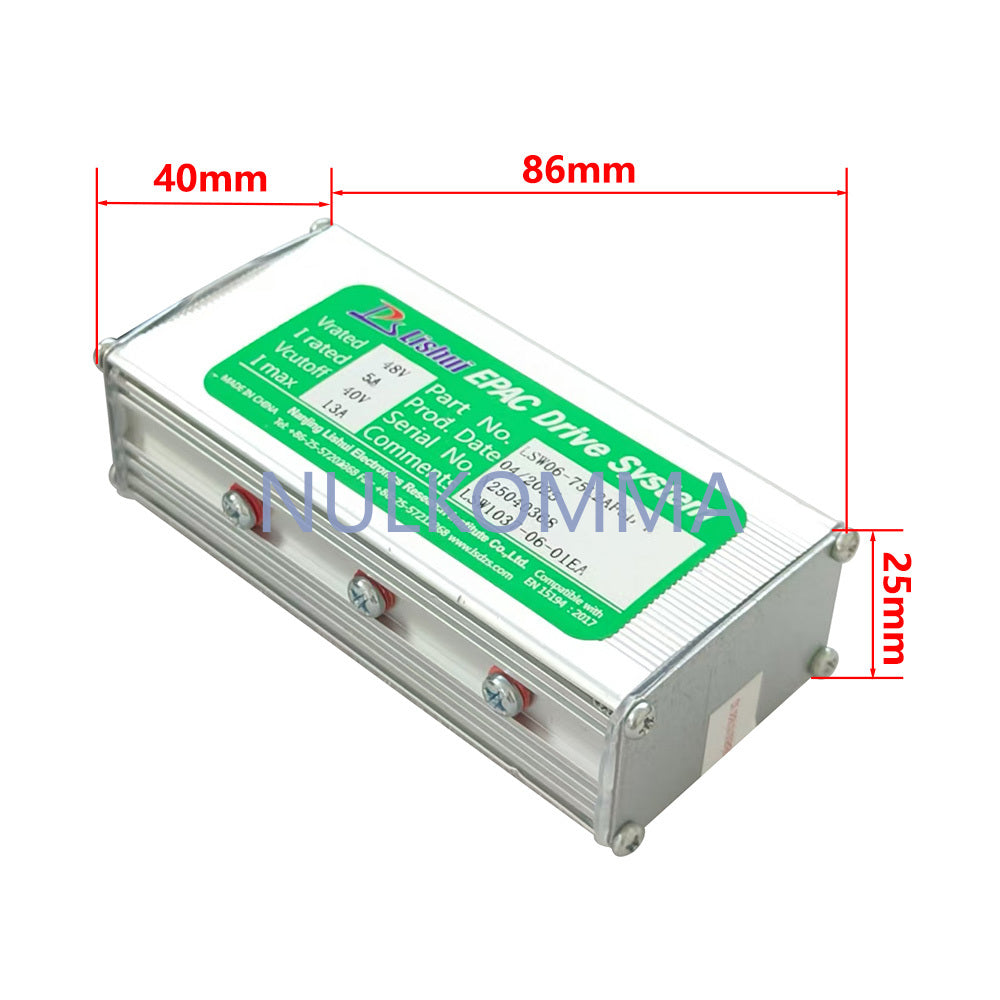

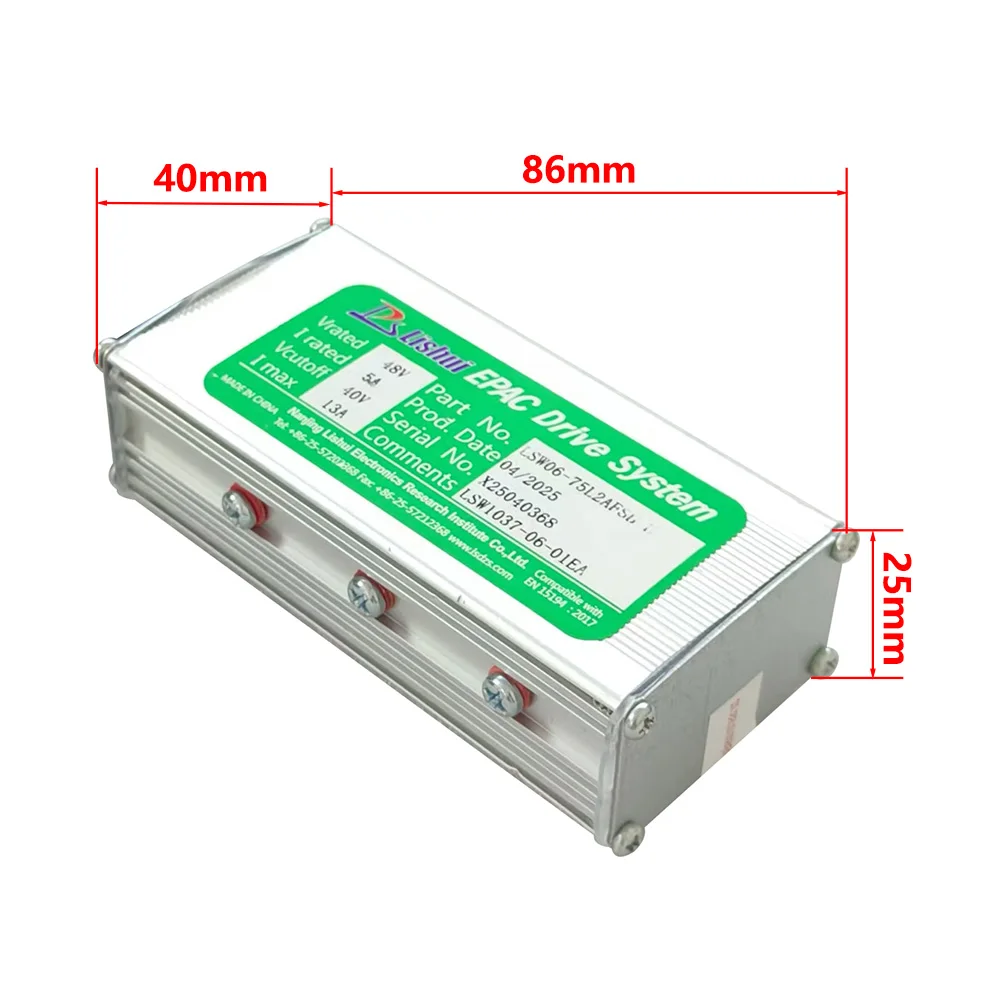

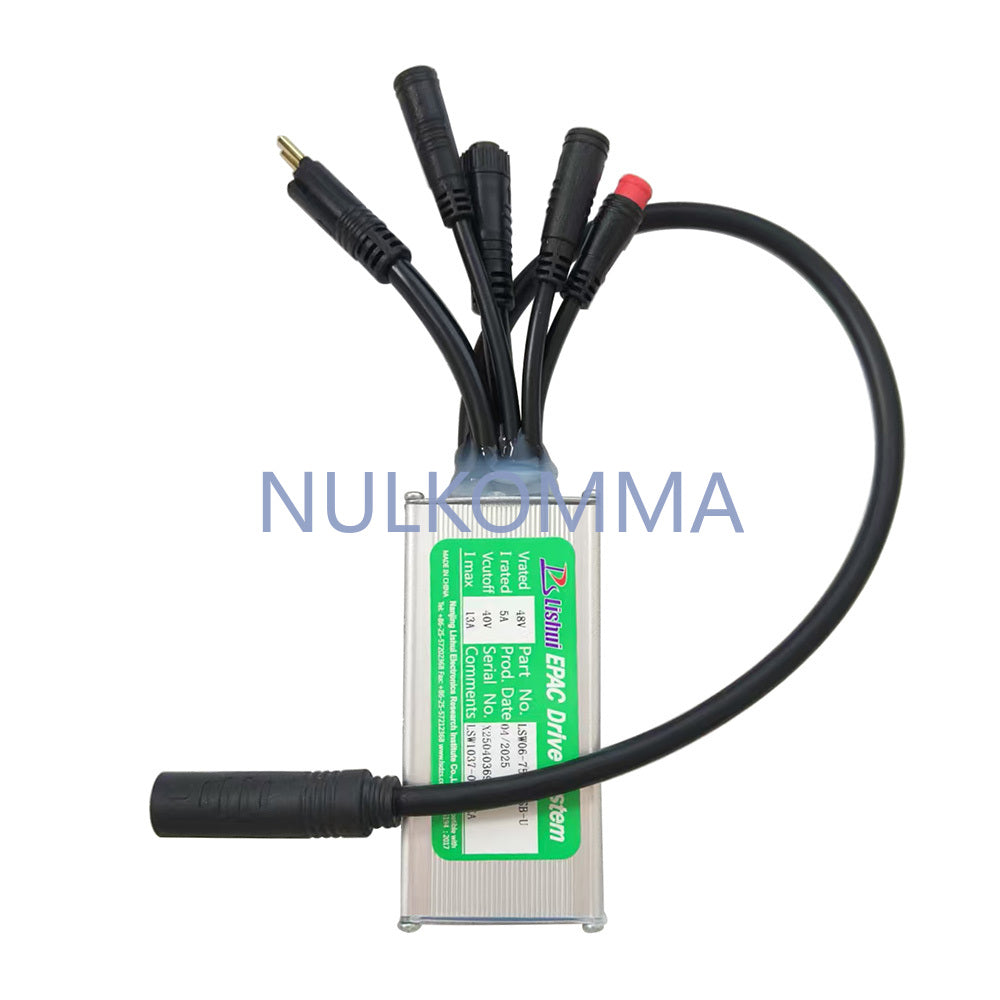

Electric Bike Brushless Motor Controller LSW1037-06-01EA 48V 13A Electric Scooter Accessories Bike for 5S Meter

Product Description :

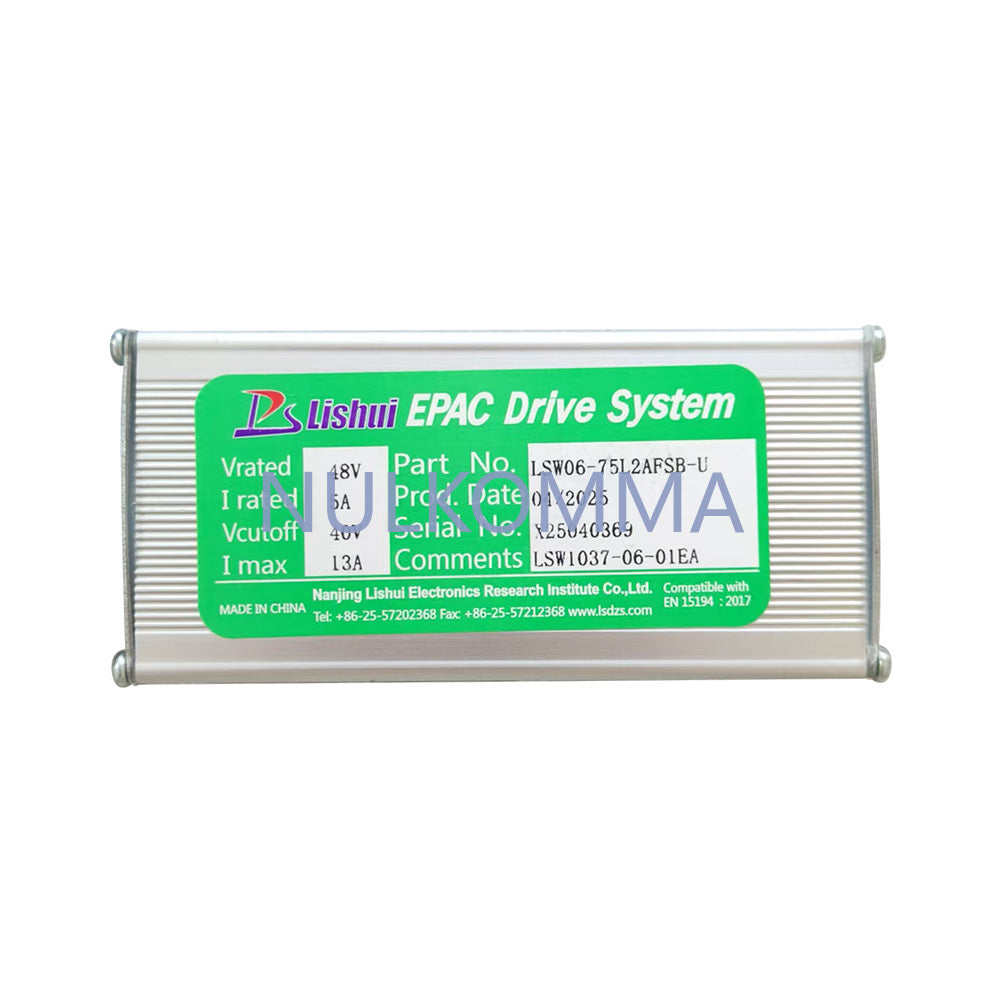

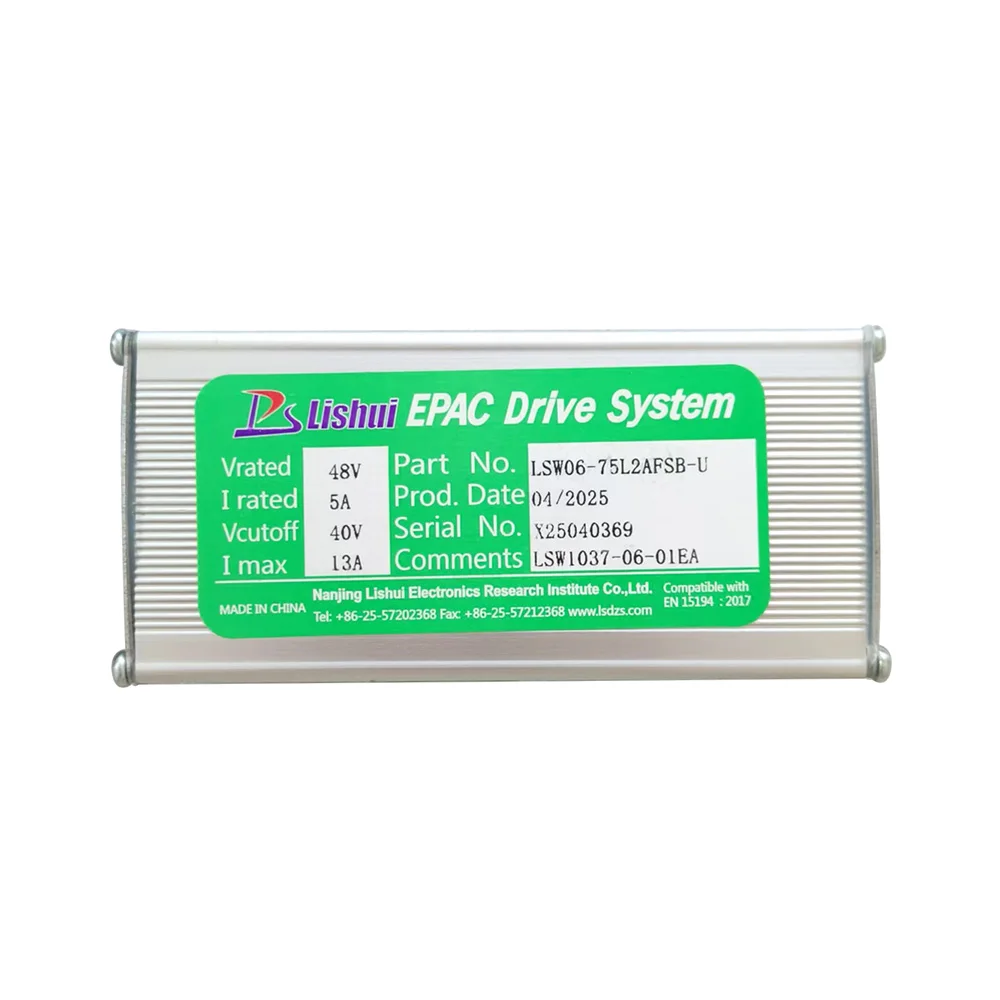

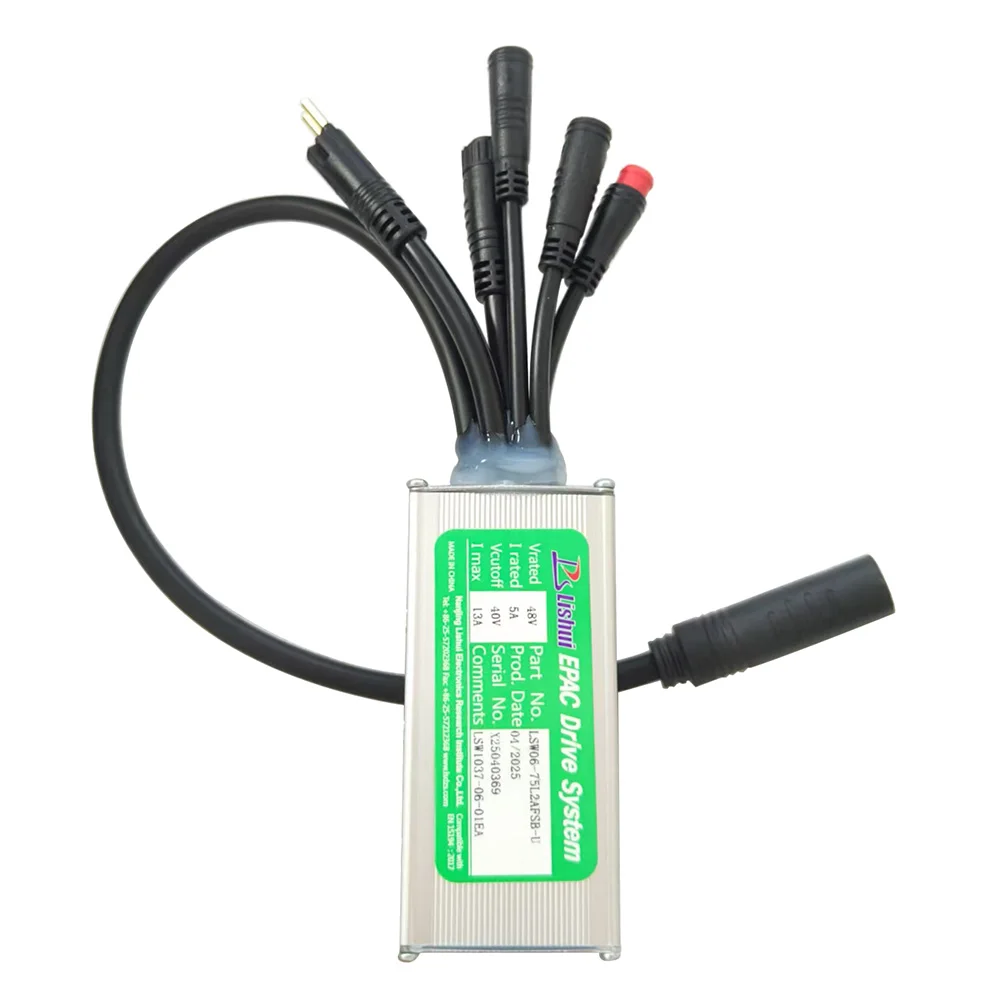

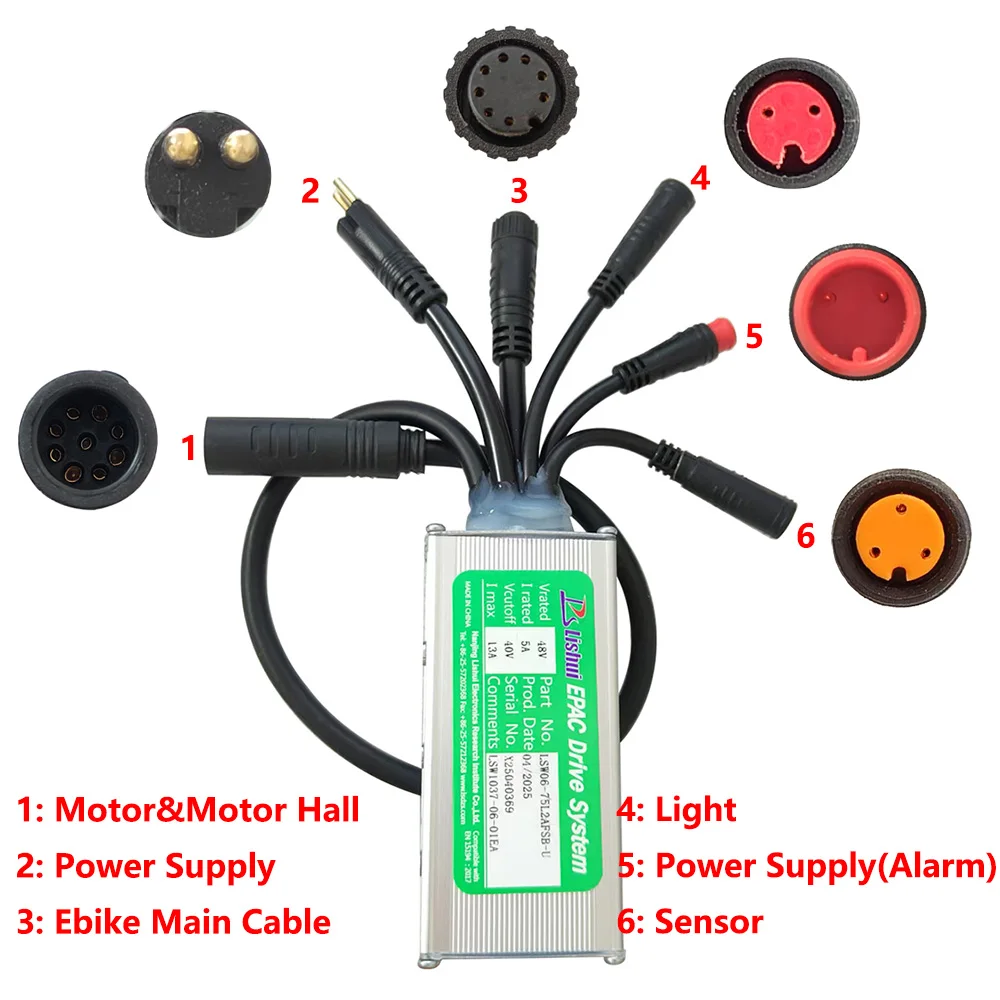

LSW06-75L2AFSB-U 48V 13A Electric Bicycle Controller with power interface, motor & motor hall interface, speed measurement signal interface, sensor signal interface, light interface power supply (alarm). Suitable for electric bicycle, electric mountain bike, fat tire bicycle, etc.

1. Brake mode: low level

2. With Cordis KD-2PS-L 12-grain disk double Hall sensor;

Boost over 3 grains of disk to start;

3. with Cordis KD58C communication instrument (customized 5S communication protocol), without 6KM/H cart function. Control boost speed 0-5 gears (Note: 1-5 speed set by the meter, measured current limit 5A); 0 motor does not work.

4. When there is no meter communication, the controller does not work.

5. With ShengYi DGW12KS 16 inches with Hall with temperature speed gear motor, a speed magnet. Pair of poles 16 poles, reduction ratio 12.3, no-load speed 410 ± 10rpm.

6. When the headlight function is on, the headlight and taillight are lit at the same time, and the taillight flashes when the brake is applied.
