KD21P EBike LCD Display Electric Bike Conversion Parts 36V 48V E-Bike Speed Controller Mountain Bike Electric Scooter Key Disp

Description:





Features Overview



The KD21P-6PIN model has a variety of features to meet your riding needs, including

Intelligent power indication

Motor output indication

Auxiliary gear adjustment and indication

Speed display (including real-time speed, top speed, average speed)

Mileage display (including single and total mileage)

Auxiliary push control and indication

Ride time display

Backlight control and display

Error code display

Various parameter settings (e.g. speed limit, battery power setting and auxiliary parameter setting, power-on password setting, controller current limit setting, etc.)

Default parameter restoration function

Button definition

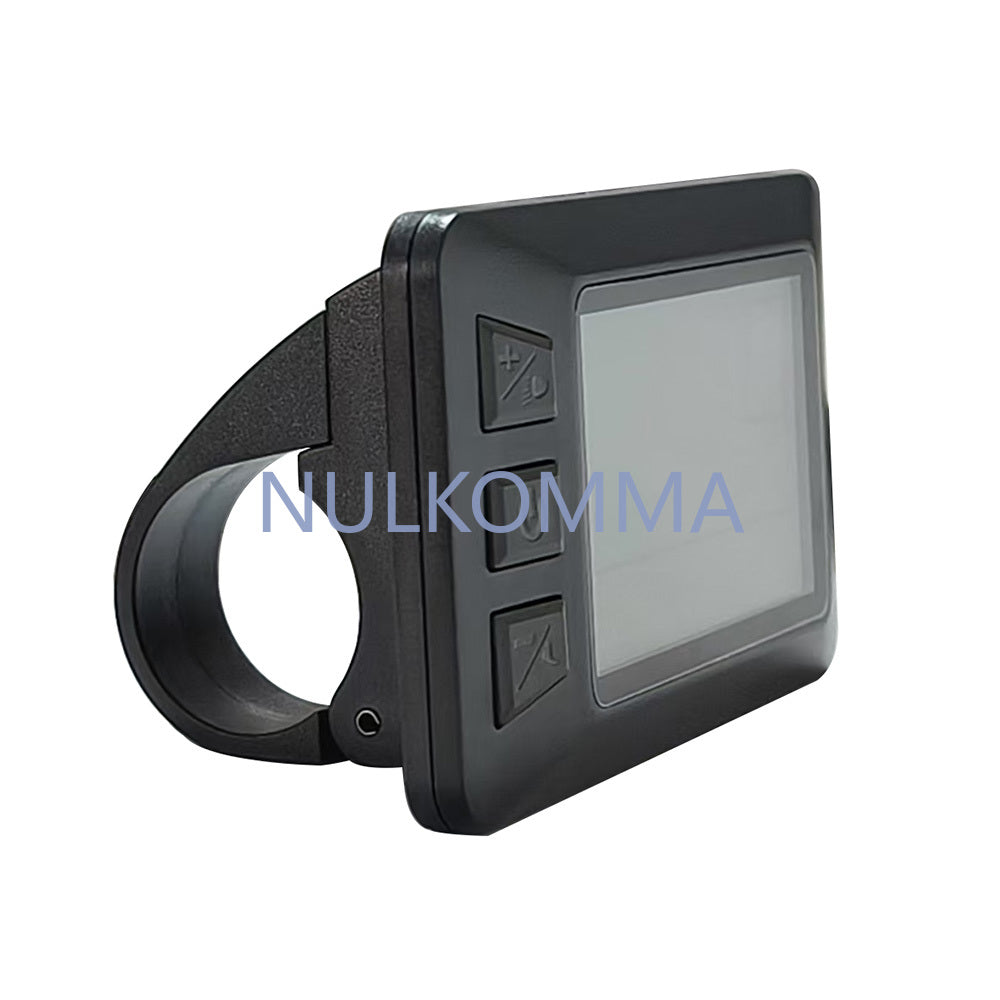

There are three buttons on the KD21P instrument, including the On/Off/Mode button, Plus button, and Minus button. In the following descriptions, the word “MODE” is used for the buttons.

In subsequent descriptions, the word “MODE” is used for the buttons, the word “UP” is used for the buttons, and the word “DOWN” is used for the buttons.

Product Name and Model Number

Smart LCD meter for e-bike, Model No. KD21P.

Specification Parameters

24V/36V/48V power supply

Rated working current of meter: 10mA

Maximum working current: 30mA

Shutdown leakage current: <1uA

Controller power supply current: 50mA

Operating temperature: -20～60°C

Storage temperature: -30～70°C

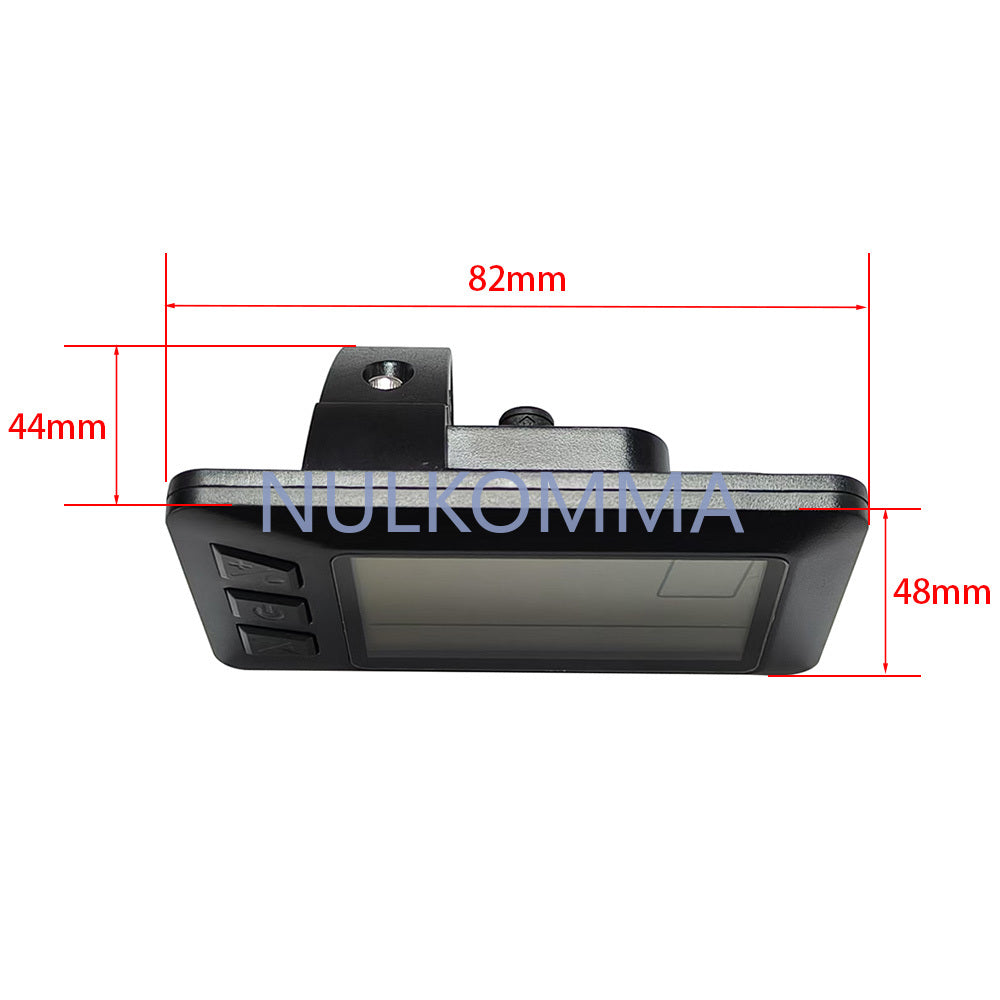

Overall Dimension: 81*48*41.5 mm

General Operation

Power switch

After long pressing the MODE button, the instrument starts to work and turns off the power automatically.



Packaging:

1*LCD Display
