Description:
a. Display
Speed display, motor power ratio display, battery level display, fault indication, total mileage, single mileage, cruise control, single running time, light signal
b. Controls and settings
Power switch, headlight control, 6km/h acceleration control, wheel diameter setting, maximum speed setting, idle time setting for auto sleep, backlight brightness setting, voltage level setting,
c. Communication protocol： UART
Meter Setting Function
P01: Backlight Brightness (1: darkest; 3: brightest)
P02: Mileage Unit (0: KM; 1: MILE) P03: Voltage Class: 24V (default) /36V / 48V
P04: Hibernation Time (0: never, other figures refer to the hibernation time) Unit: minute
P05: Power Gear - 0/3 Gear Mode: Gear 1: 2V Gear 2: 3V Gear 3: 4V
1/5 Gear Mode: Gear 1: 2V Gear 2: 2.5V Gear 3: 4V
Gear 4: 3.5V Gear 5: 4V
P06: Wheel Diameter Unit: inch
Precision: 0.1
P07: Magnet Steel Number for Speed Test Range: 1-100
P08: Speed Limit
Range: 0-50km/h, parameter 50 indicates no speed limit.
1. Non-communications status (panel-controlled)
When the current speed exceeds the speed limit, the PWM output will be shut down;
Long press on a single key is used to switch mode/on/off status.
Long press on combination keys to set parameters, which can avoid misoprations (short press on combination keys is disabled, for it's easy to induce misoperation and hard to manipulate).
P09: Zero / Non-zero Start Setting:
0: Zero Start
1: Non-zero Start
P10: Drive Mode Setting
0: Power Drive - The specific gear of the assist drive decides the assist power value. Il this status the handlebar does not work.
1: Electric Drive - The vehicle is driven by the handlebar. In this status the power gea does not work.
2: Power Drive + Electric Drive - Electric drive does not work in zero-start status.
P12: Assist Power Intensity Range: 0-5
P13: Power Magnet Steel Number: 5 / 8 / 12pcs
P14: Current Limit Value: 12A by default; Range: 1-20A
P15: Unspecified
P16: ODO Zero-Out: Long press the upper key for 5 seconds and ODO will zero out.

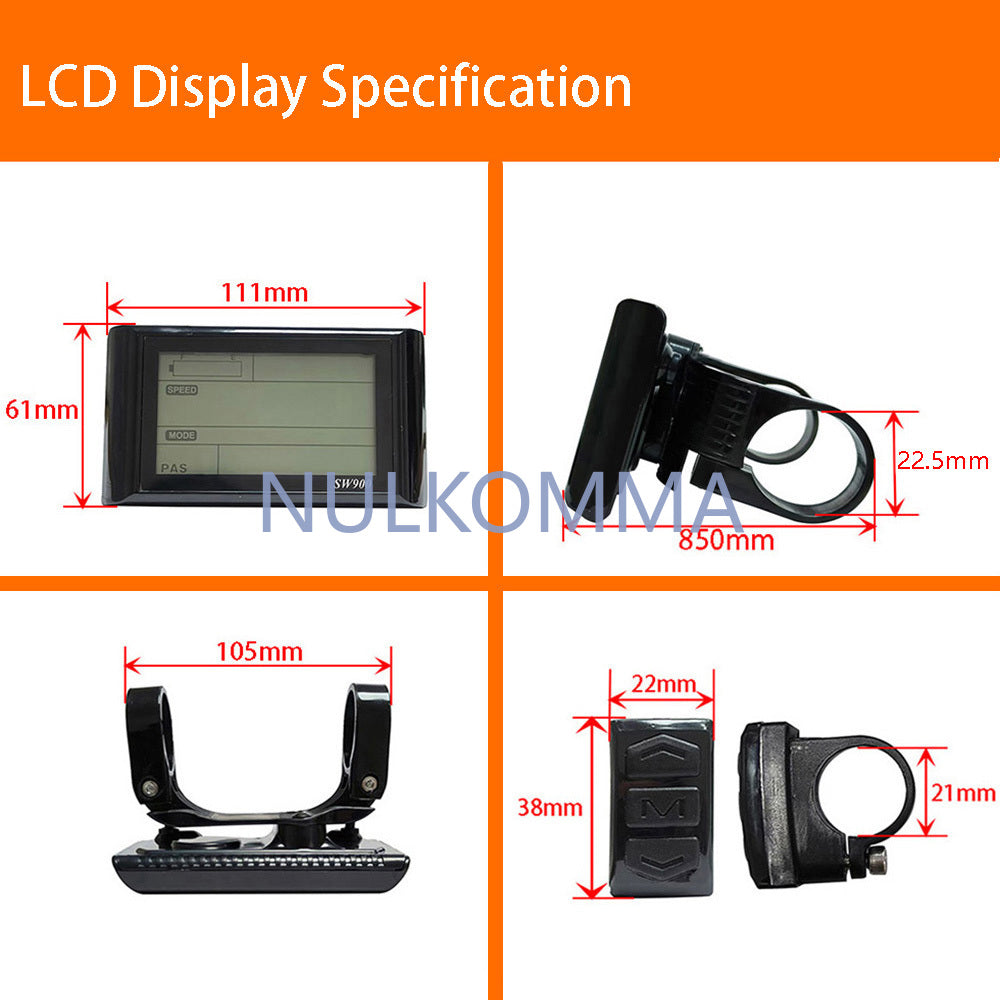

Product Parameters:
Type：SW900

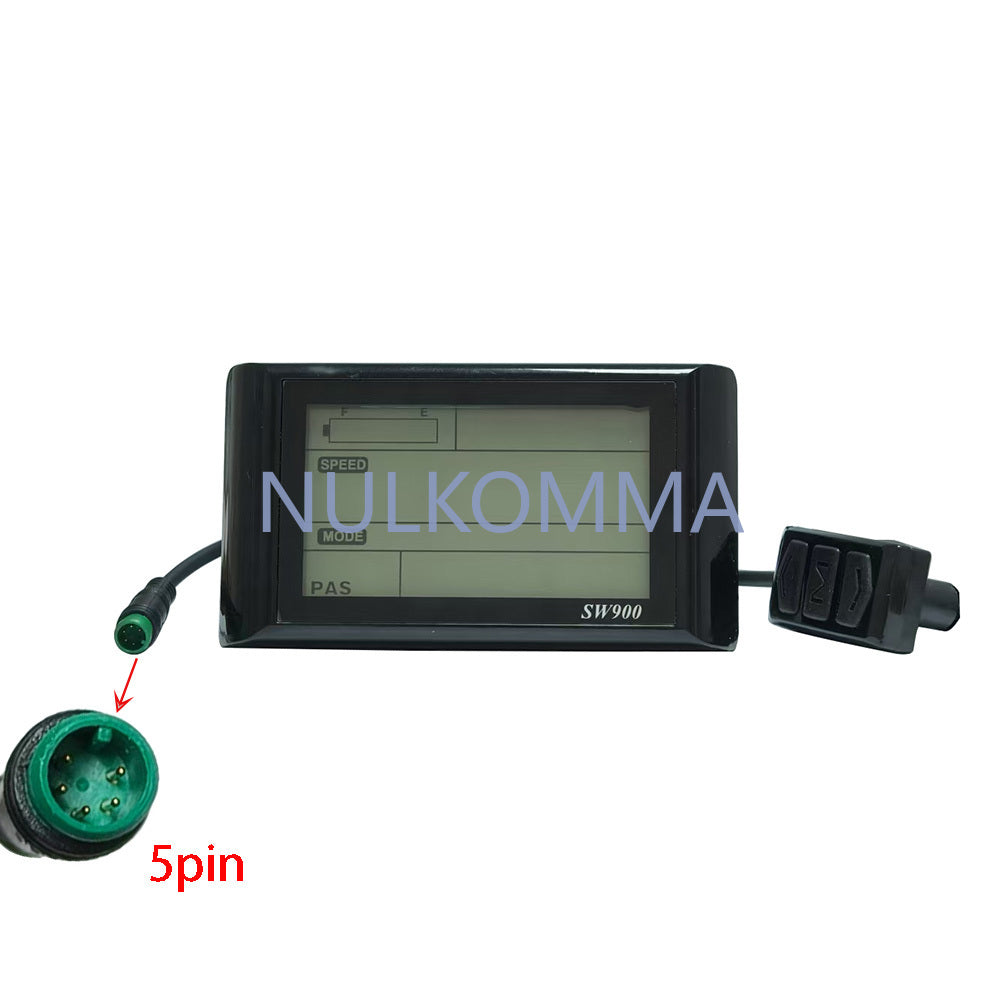

Plug：SM
Voltage:
36,48V
Material：ABS,LCD
Weight：164g
Voltage：Black
Waterproof：IP56
Packing:
1*LCD Display
