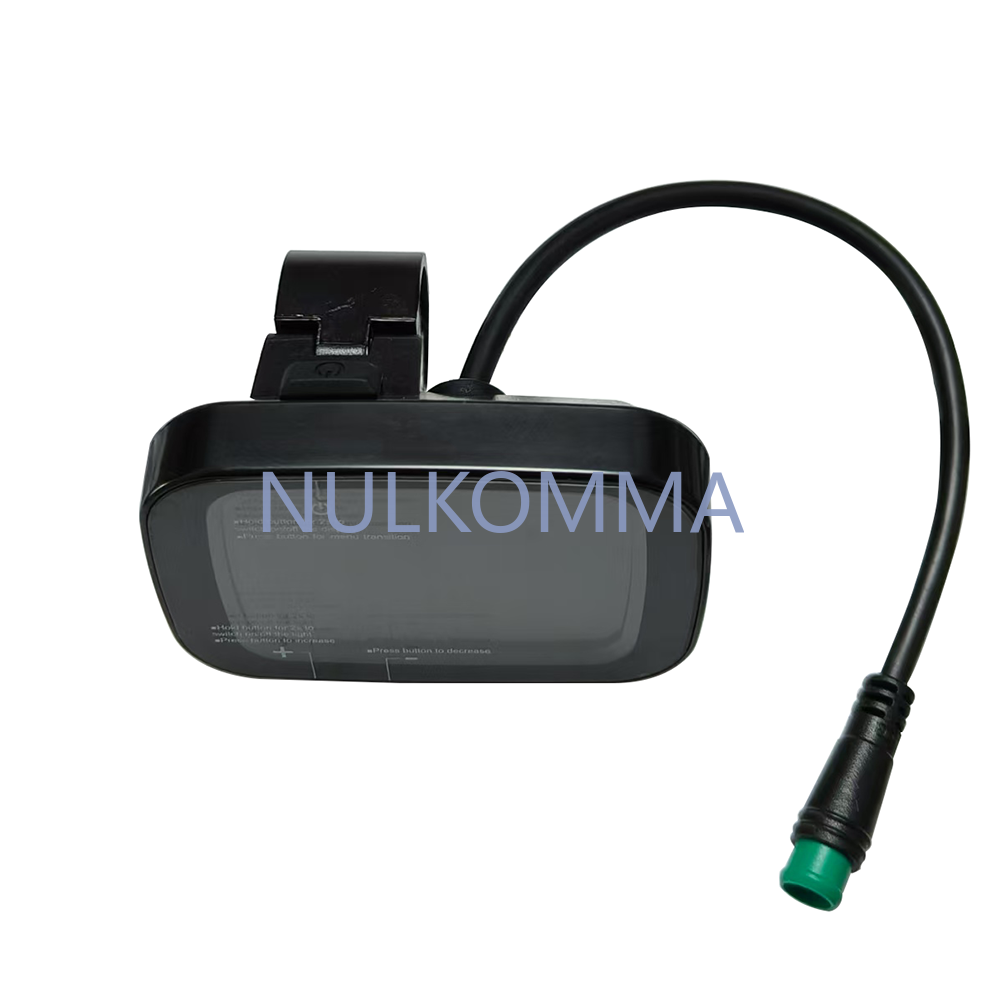

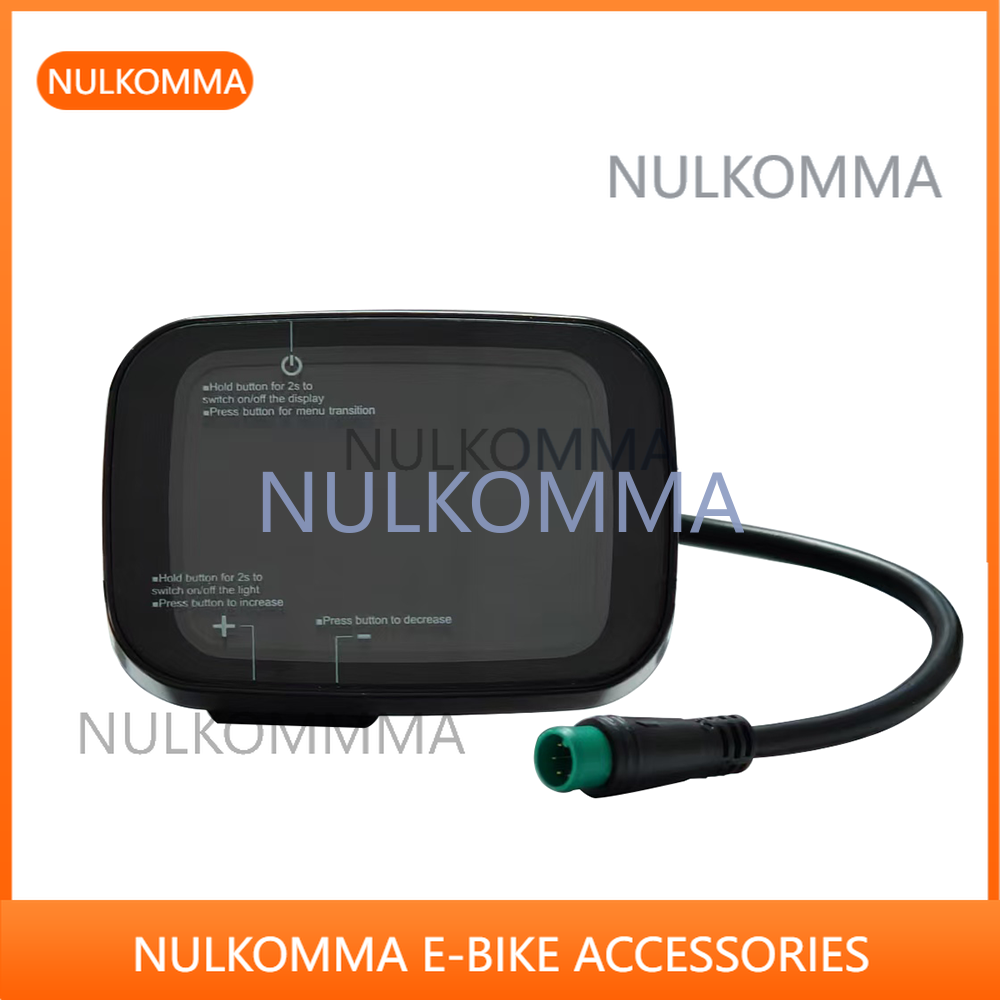

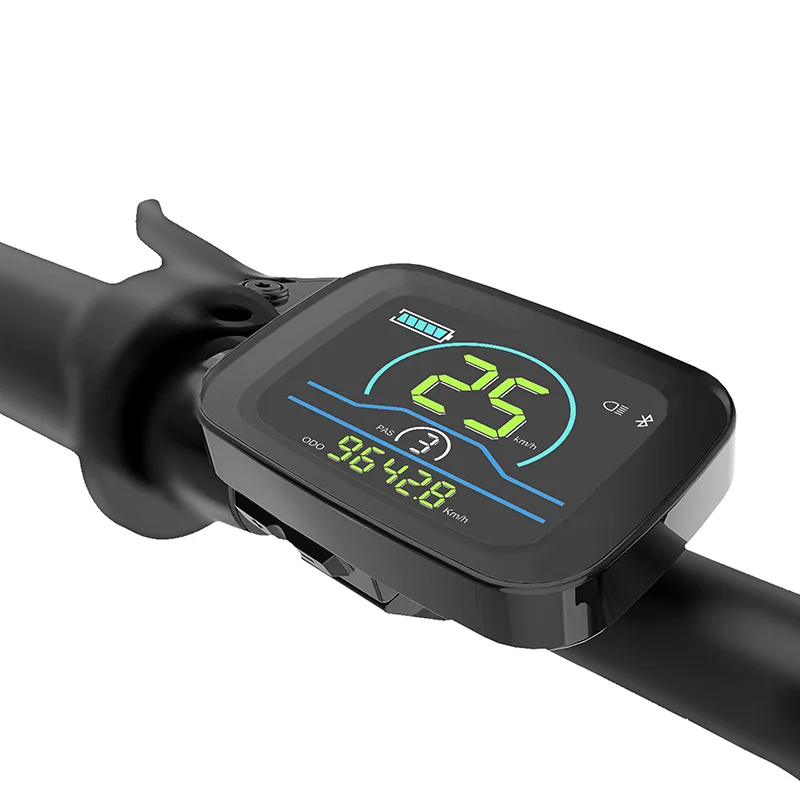

YL81C EBike LCD Display 5Pin Waterproof Connector Electric Bike for Controller 36V 48V Electric Mountain Bike Accessories Yolin
YL81C EBike LCD Display 5Pin Waterproof Connector Electric Bike for Controller 36V 48V Electric Mountain Bike Accessories Yolin
Couldn't load pickup availability
Product Purchase Notes:
YL81C color LCD display, there are different LCD Display protocols on different brands of ebikes, please contact our online customer service to determine the LCD Display protocol you need before you buy, if you don't determine the LCD Display protocol with our online customer service, your purchased display may not match your ebike! This is very important thing! Please contact us!
Description:
Origin: China
Brand Name: Yolin
Model No: YL-81C
Screen Type: LCD
Colour: Black
Voltage:36/48 volts
Communication:UART/CAN
Support protocol:YL-01,YL-02,5s,KDS,J,Octagon
PAS level: 0-3/1-3/0-5/1-5

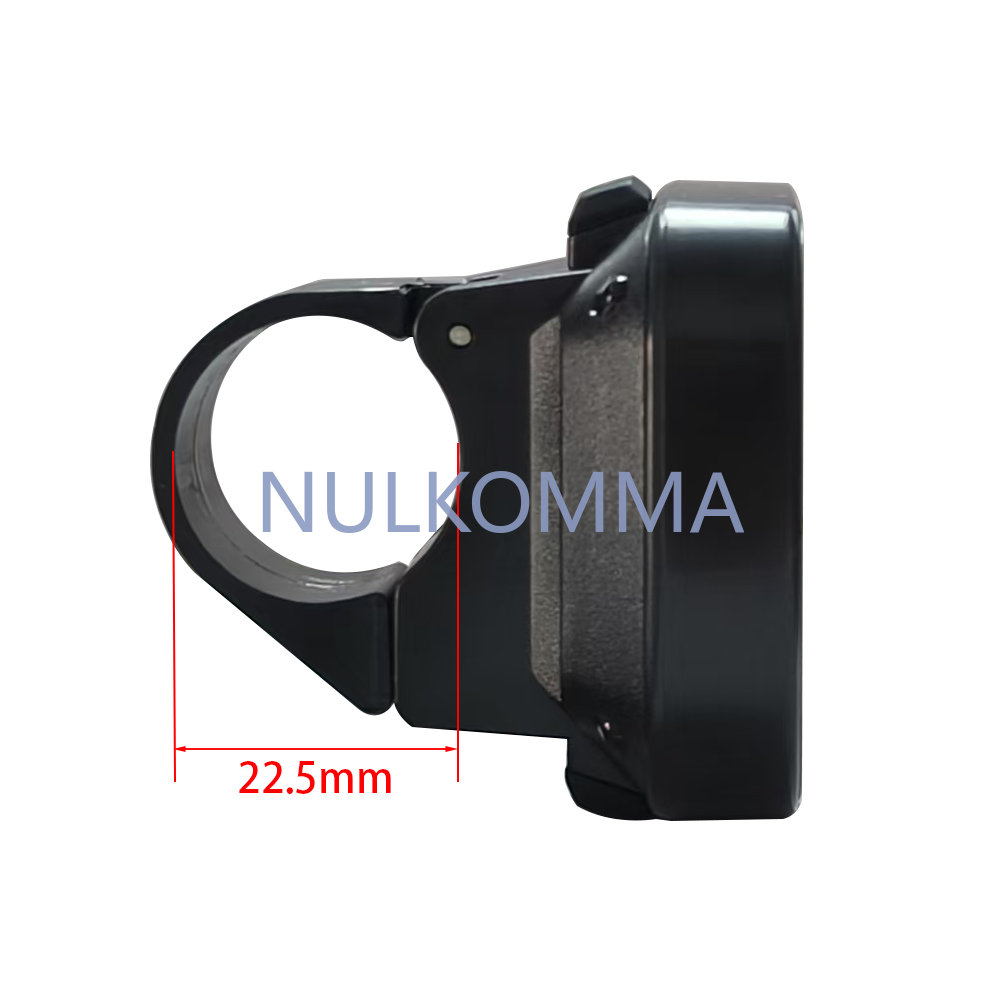

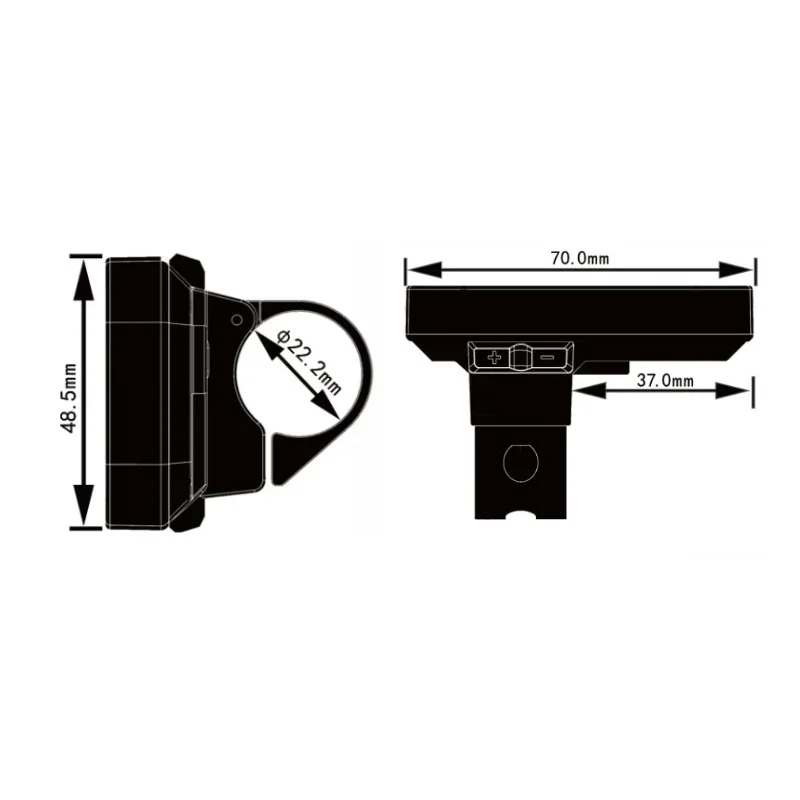

Mounting handlebar size: Φ22.2mm
Wire connector: waterproof wire (recommended)/regular wire
Certification: CE / EN15194 / ROHS
Waterproof: IP65

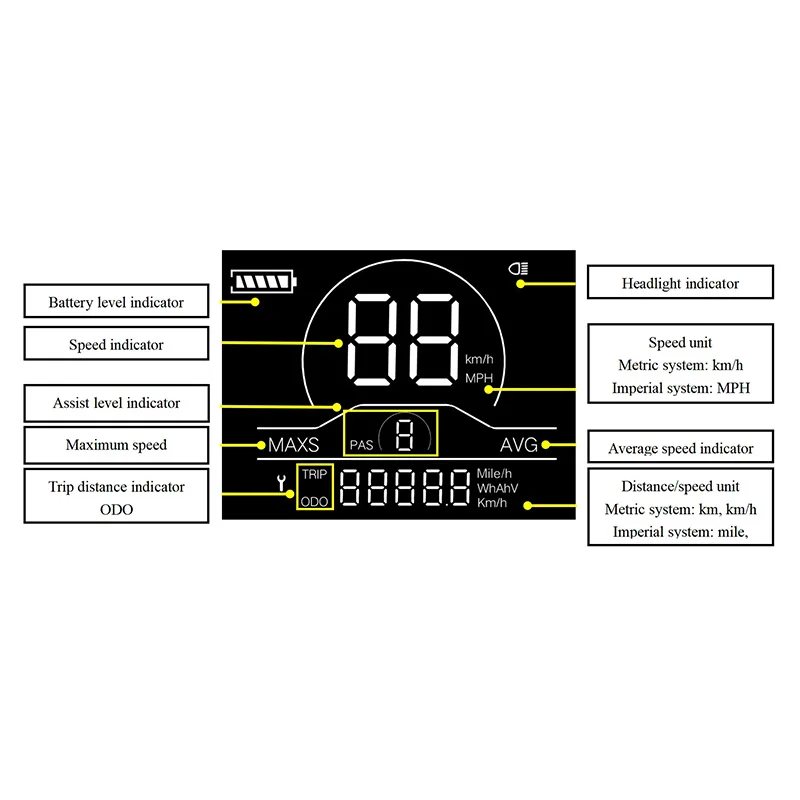

1.Product Features
● Battery level indicator
● Auxiliary level adjustment and indication
● Headlight indicator
● Speed indicator (including real-time speed, maximum speed (MAXS) and average speed (AVG))
● Distance indicator (including ODO and travelling distance (travel))
● Error code indicator
● Parameter setting function
2. Product Specifications
● 36V/48V power supply
● Rated operating current 15mA
● Maximum operating current 30mA
● Leakage current at power failure <1uA
● 50mA operating current at the power controller terminal
● Operating temperature -20 ~ 60 °C
● Storage temperature -30 ~ 70 °C
3. Wiring sequence definition
We have regular connection harnesses and waterproof connectors. According to customer's requirement, we can provide different connectors.
